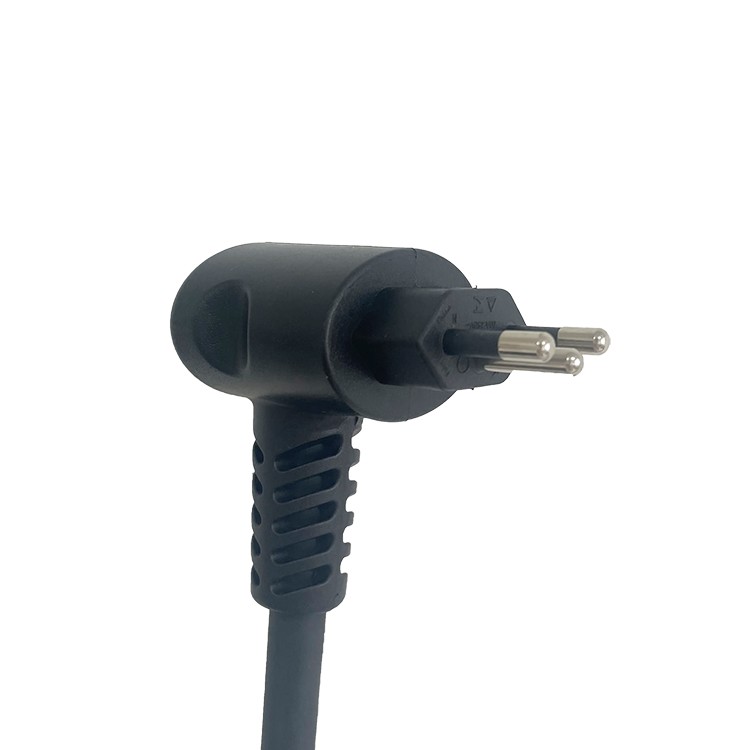

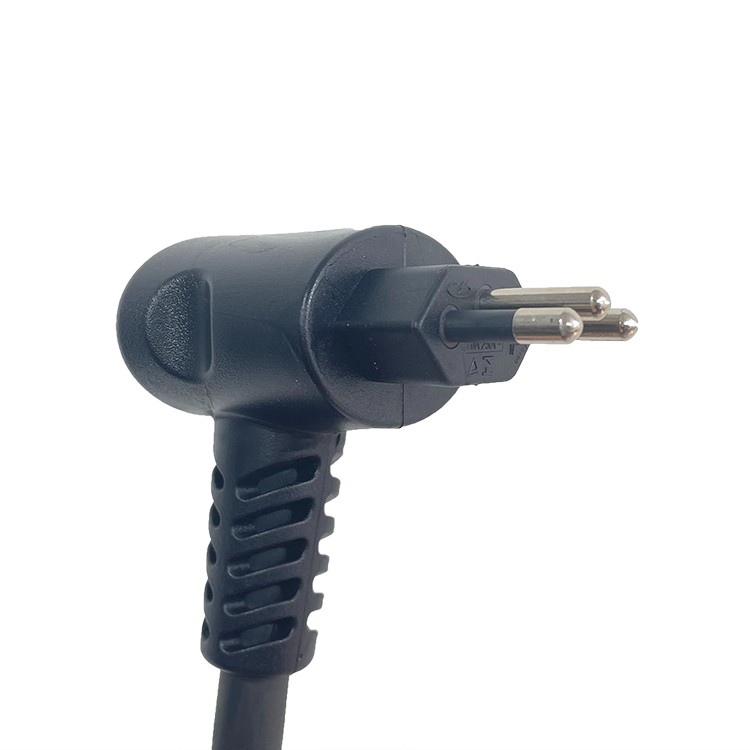

Model 2 EV charger dedicated plug
Brazil 16A 20A EV charging grid cables and plugs are used in mode 2 AC charging cable assemblies to charge battery-powered
(BEV) or plug-in hybrid electric vehicles (PHEV).
EV charging grid cables can be used with any domestic or household socket outlet and connect to the In-Cable Control
and Protection Device (IC-CPD), allowing drivers to safely charge their electric vehicle
without the need for a dedicated circuit or EV charging station.
All electric vehicle charging grid cables and plugs meet industry standards, regulatory, andcountry-specific compliance
requirements, ensuring compatibility with various regional grid plug interfaces.
| Rated Current: | 16A,20A | Plug Type: | Plug Type N | ||
| Rated Voltage: | 250V | Female end: | According to your request | ||
| Insulation: | Rubber | Temperature Detection:(optional) | Thermal protector or NTC Thermistor | ||
| Jacket: | TPU or Rubber | Working Temp.: | -35℃~+50℃ | ||
| Cable Standard: | EN50620:2017 IEC 62893-3:2017 | Min. bending radius: | 5D（D:OD） | ||
| Conductor: | Bare or tinned copper Stranded | RoHs,Reach: | Approved | ||
| Model | Standard | Applicable flexible cord | Certificate | ||
Type N (16A) | ABNT NBR NM 60884-1:2010 | H07BZ5-F 3G1.5mm²+nX0.5-1.0 mm²(n=0,1,2) H07BZ6-F 3G1.5mm²+nX0.5-1.0mm² (n=0,1,2) | TUV | ||
Type N (20A) | H07BZ5-F 3G2.5mm²+nX0.5-1.0 mm²(n=0,1,2) H07BZ6-F 3G2.5mm²+nX0.5-1.0mm² (n=0,1,2) | ||||
