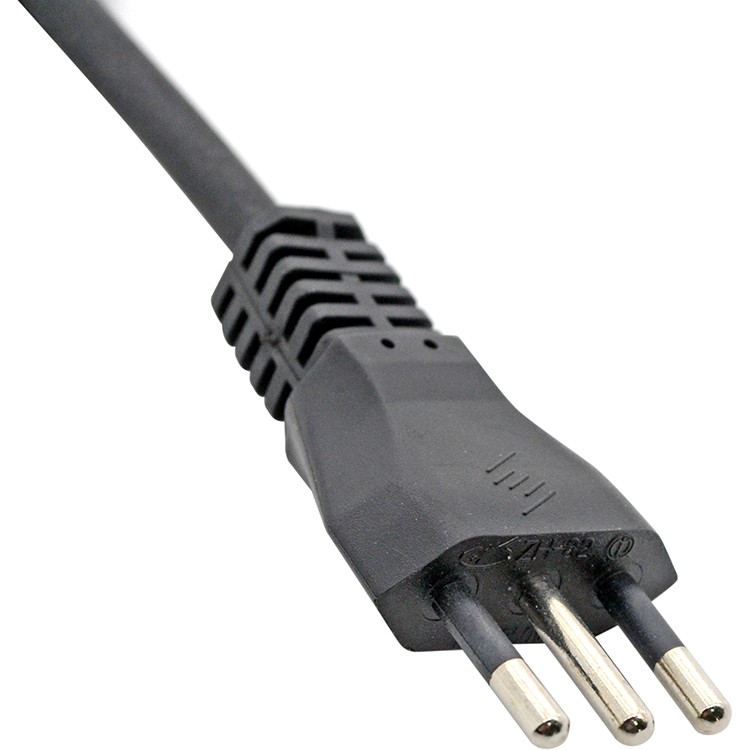

Italy&Chile 10A 250V Plug Type L Power Cord

Italy&Chile 10A 250V Plug Type L Power Cord

Product Item: Plug Type L
Rated Current : 10A
Rated Voltage : 250V
Plug Type : Plug Type L
Cable Insulation : PVC or Rubber
Cable Jacket : PVC or Rubber
Female end : According to your request
RoHS&Reach : Approval
  • Product Detail
  • FAQs

√ Used in: Italy, Chile, Uruguay, Syria, Libya, Ethiopia, etc.

√ The Type L Plug is a 3 pin plug primarily used in Italy and Chile. The Type L Plug is grounded, has an amp rating of 10 A and 16 A, and a voltage range of 220-240 V. The 10A is compatible with types C and L, while the 16 A is compatible only with type L.

√ There are two variations of the Type L plug, one rated at 10 amps, and one at 16 amps. The 10 amp version has two round pins that are 4 mm thick and spaced 5.5 mm apart, with a grounding pin in the middle. The 16 amp version has two round pins that are 5mm thick, spaced 8mm apart, as well as a grounding pin.

√ Comply with IEC and Italian standards and have approved by TUV



Model
Standard
Available with Cable
Approval
Plug Type L
10A 250V
IEC 60884-1
CEI 23-50
H03VV-F 3G0.75mm²
TUV
H05VV-F 3G0.75~1.5mm²
H05RN-F 3G0.75~1.0mm²
H07RN-F 3G1.0~1.5mm²





...
