Wuxi LFH Electric Co.,Ltd.

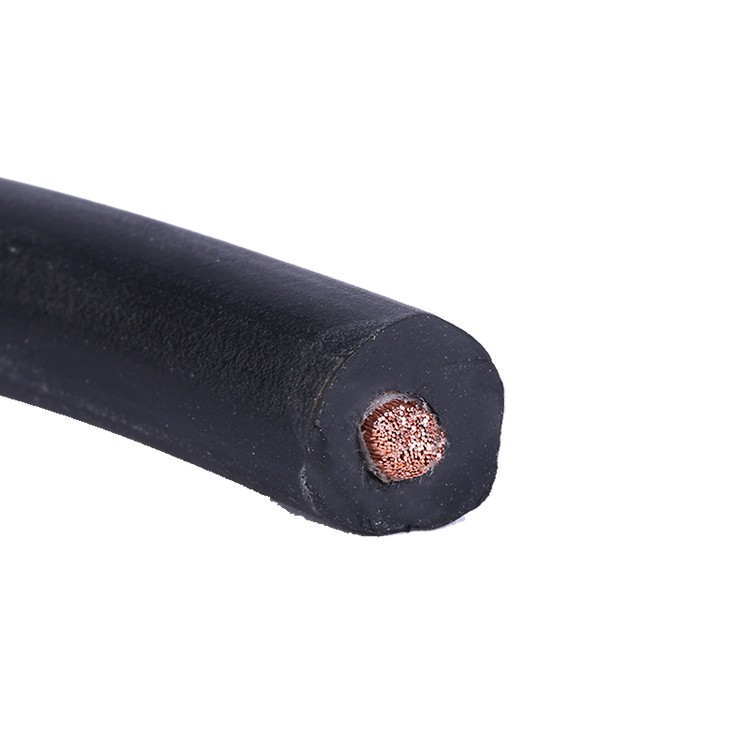

√ CCC certified Welding cable
√ Passed IEC 60332-1 vertical flame test
Conductor | Insulation | MAX.COND Resistance (Ω/km, 20°C, DC) | |||
mm² | No./mm | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. (mm) | |
16 | 504/0.2 | 5.6 | 2 | 9.7 | 1.19 |
25 | 791/0.2 | 6.98 | 2 | 11.1 | 0.78 |
35 | 1102/0.2 | 8.36 | 2 | 12.5 | 0.552 |
50 | 1577/0.2 | 9.98 | 2.2 | 14.5 | 0.39 |
75 | 2205/0.2 | 12.6 | 2.4 | 17.5 | 0.276 |
95 | 2997/0.2 | 14.78 | 2.6 | 20.2 | 0.204 |
