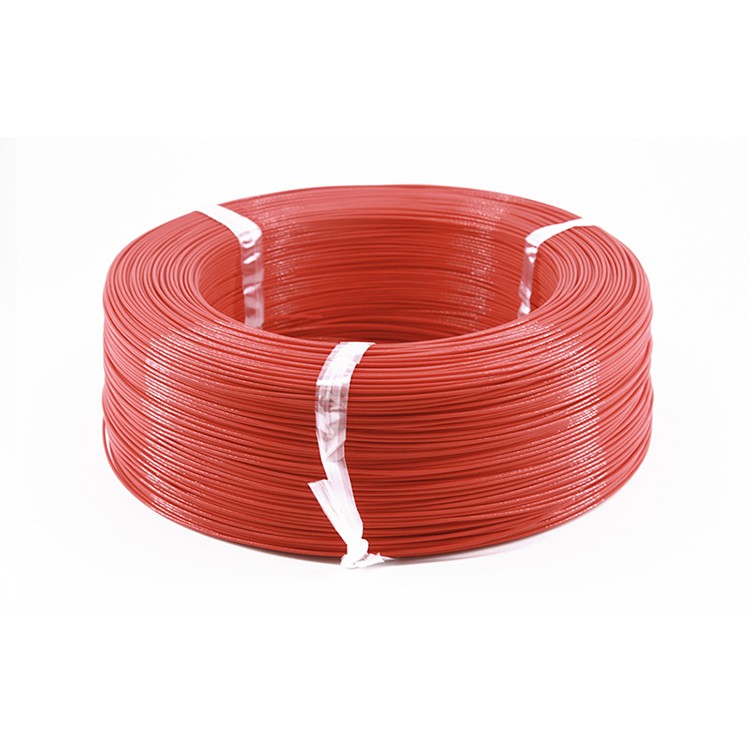

AVS Automotive Wire

AVS Automotive Wire

Product Item:AVS
Standard: JASO D611
Temperature : -40℃~+105℃
Conductor: Bare or tinned copper stranded
Cable Insulation: PVC
  • Product Detail
  • FAQs

√ Wires for low-voltage circuits in automobiles

√ Standard insulation thickness, easy to strip and cut

√ Good delay combustibility,passed DIN 72551-5 3.7.1 flame retardant test

√ High flexibility, heat resistance, oil resistance; acid and alkali resistance, cold resistance, wear resistance, environmental protection, flame retardant and other characteristics


ConductorInsulationCurrent limit     (A)*2

Max Resistance

(Ω/km,20℃,DC)

mm²No./mm

Nom.Dia.

(mm)

Nom.thick.

(mm)

O.D.(mm)
StandardMax.
0.3f15/0.180.80.51.81.9748.9
0.37/0.260.780.51.81.9750.2
0.5f20/0.180.930.522.1936.7
0.57/0.320.960.522.1932.7
0.75f30/0.181.140.52.22.31024.4
0.8516/0.261.20.52.252.31122
0.8511/0.321.220.52.22.31120.8
1.25f50/0.181.470.52.52.61514.7
1.2516/0.321.480.52.52.61514.3
2f37/0.261.830.52.82.9209.5
226/0.321.880.52.93.1218.81
341/0.322.360.63.63.8295.59
565/0.322.980.74.44.6403.52





...
