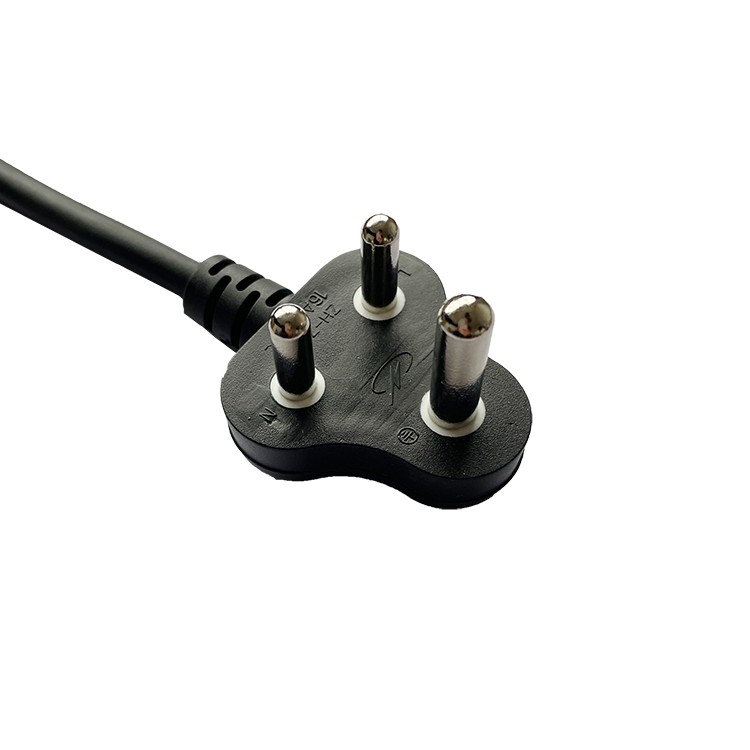

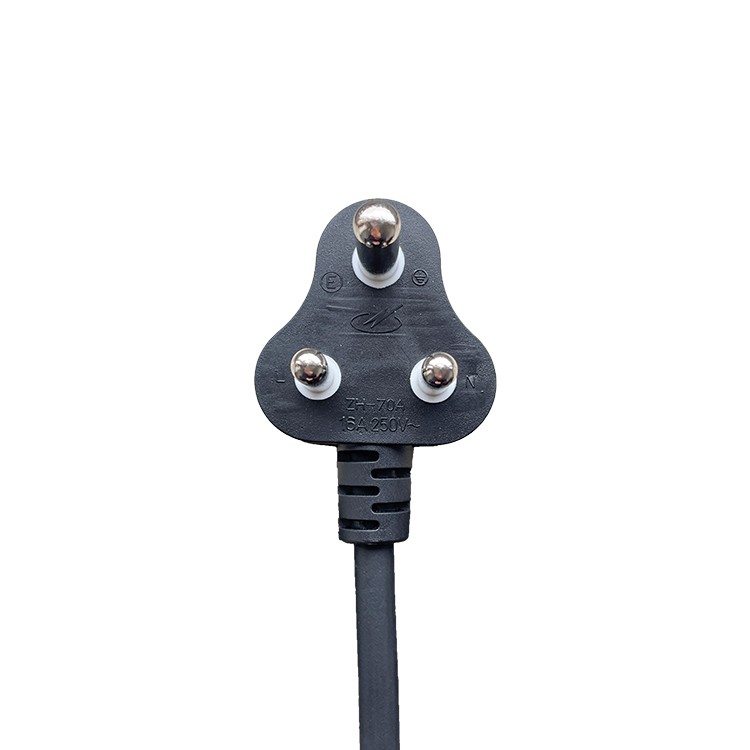

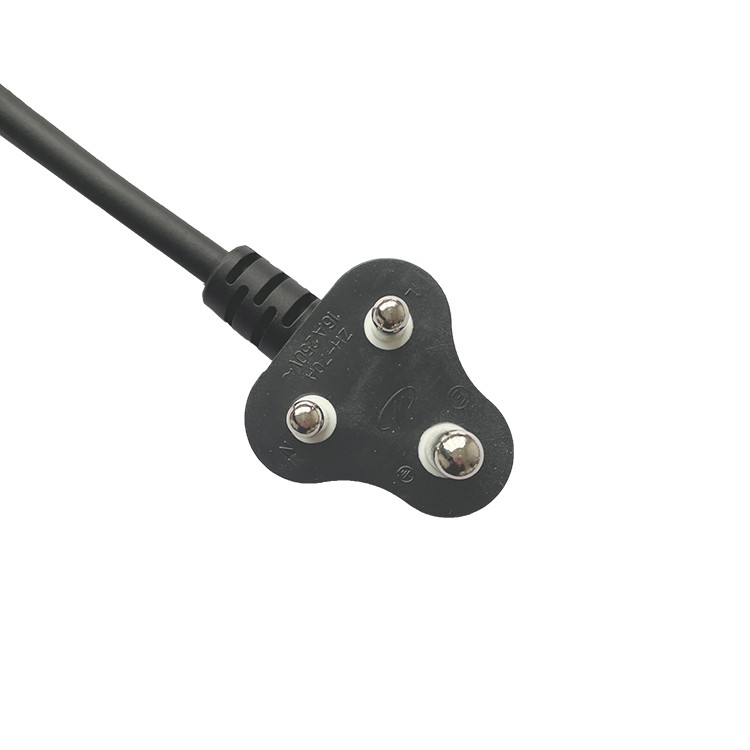

South Africa 16A 250V Plug Type M Power Cord

Product Item：Plug Type M

Rated Current : 16A
Rated Voltage : 250V
Plug Type : Plug Type M
Cable Insulation : PVC or Rubber
Cable Jacket : PVC or Rubber
Female end : According to your request
RoHS&Reach : Approval

Product Detail
FAQs

√ Plug Type M is Used in: South Africa, Swaziland, Lesotho

√ The Type M plug has three round pins in a triangular pattern and looks similar to the Indian Type D plug, but its pins are much larger. The earth pin has a diameter of 8.7 mm and length of 28.6 mm,Type M plugs are sometimes used for bigger appliances in countries that make use of Type D plugs, as well as in Israel (Type H). Therefore, sockets in these countries sometimes work with Type M plugs.

√ Comply with IEC and SANS Standard

Model	Standard	Available with Cable	Approval
Plug Type M 16A 250V	IEC 60884-1 SANS 60884-1 SANS 164-0 SANS 164-1	H03VV-F 3G0.75mm²	TUV
		H05VV-F 3G0.75-1.5mm²
		H05RN-F 3G0.75-1.0mm²
		H07RN-F 3G1.0-2.5mm²
