UL3133 600V 150℃ FT2 Flame Test Silicone Rubber Electric Wire

UL3133 600V 150℃ FT2 Flame Test Silicone Rubber Electric Wire

Product Item:UL3133
Standard: UL758
Voltage :AC600V
Temperature : 150℃
Flame Test : FT2 or VW-1

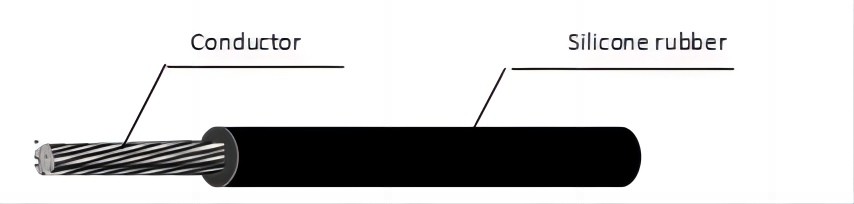

Conductor: Bare or tinned copper stranded
Cable Insulation: Silicone Rubber
  • Product Detail
  • FAQs

√ Rating: 150 deg C, 600 Vac, Horizontal flame.

√ Conductor :30 AWG - 4/0 AWG, solid or stranded.

√ Insulation: Extruded SR, 30 mils minimum average thickness, 27 mils minimum thickness at any point.

√ Use : Internal Wiring where totally enclosed.

AWG

 Conductor Structure

(mm)

 Insulation  Thickness

(mm)

 Outer Diameter

(mm)

30

7/0.1

 0.76

1.9±0.1

28

7/0.127

2.0±0.1

26

7/0.16

2.1±0.1

24

7/0.20

2.2±0.1

22

7/0.254

2.4±0.1

20

10/0.254

2.6±0.1

18

16/0.254

2.8±0.1

16

26/0.254

3.1±0.1

14

41/0.254

3.5±0.2

12

65/0.254

4.0±0.2

10

103/0.254

4.9±0.2

8

163/0.254

5.7±0.3

6

260/0.254

6.8±0.3

4

413/0.254

8.1±0.3

2

168/0.5

9.8±0.4

1

212/0.5

10.8±0.4

1/0

268/0.5

12.0±0.4

2/0

342/0.5

13.3±0.4

3/0

430/0.5

14.7±0.5

4/0

538/0.5

16.3±0.5





...
