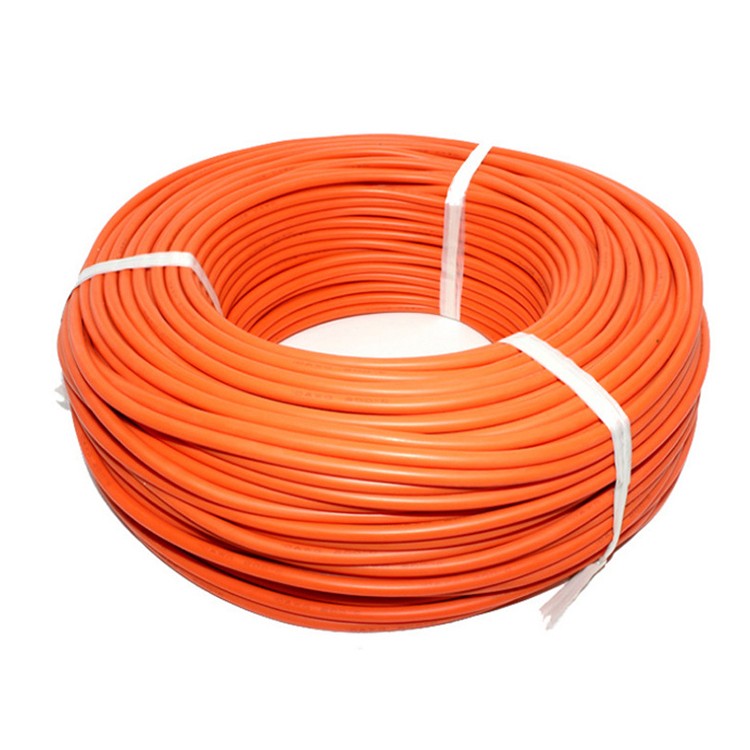

1500V 125℃ TUV Certified ES-H15Z-F Energy Storage Cable

1500V 125℃ TUV Certified ES-H15Z-F Energy Storage Cable

Product Item:ES-H15Z-F
Standard:CQC1143;PPP58049A
Temperature : -40℃~125℃
Rated Voltage : 1500V
Conductor: Stranded Bare Copper
Cable Insulation:XLPE
Certificate: TUV,RoHS,Reach
  • Product Detail
  • FAQs

√ TÜV SUD and CQC certification

√ Low smoke halogen free flame retardant heat resistant 125℃ cross-linked polyolefin insulation/jacket ;  The product has the advantages of softness, cold resistance, heat resistance, high flame retardant, UV resistance, long service life and so on.

√ Passed single vertical flame test (IEC60332-1); Applied to energy storage system,battery-to-battery connection, battery-inverter connection, BMS connection, etc.


ModelConductorInsulation

Max Resistance

 (Ω/km,20℃,DC)

mm²No./mm

Nom.Dia.

(mm)

Nom.Thick.

(mm)

Nom.Dia.

(mm)

ES-H15Z-F (TUV)

ES-RYJ-125 (CQC)

456/0.302.590.84.255.09
684/0.303.170.84.853.39
1078/0.404.0815.91.95
16126/0.405.591.17.91.24
25196/0.406.951.39.70.795
35276/0.408.31.3110.565
50396/0.409.91.5130.393
70553/0.4011.71.514.80.277
95760/0.4013.871.5170.21
120950/0.4015.51.518.60.164
1501178/0.4017.261.720.90.132
1851463/0.4019.241.923.20.108
2401911/0.4023.4227.60.0817





...
