Model 2 EV charger dedicated plug

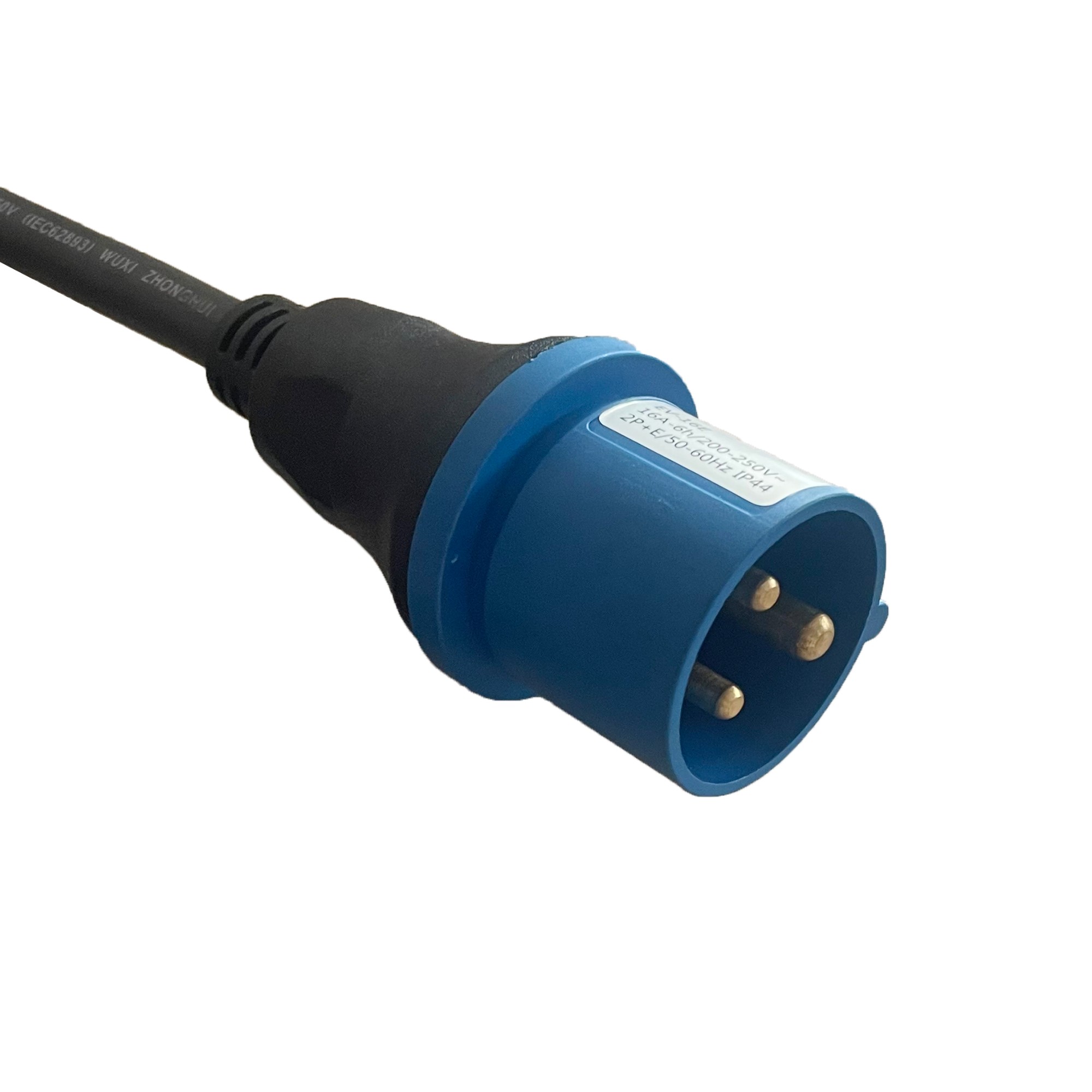

CEE Plug-Single Phase
EN60309 Standard CEE 16A & 32A EV charging grid cables and plugs are used in mode 2 AC charging cable assemblies to charge battery-powered
(BEV) or plug-in hybrid electric vehicles (PHEV).
EV charging grid cables can be used with any domestic or household socket outlet and connect to the In-Cable Control
and Protection Device (IC-CPD), allowing drivers to safely charge their electric vehicle
without the need for a dedicated circuit or EV charging station.
All electric vehicle charging grid cables and plugs meet industry standards, regulatory, andcountry-specific compliance
requirements, ensuring compatibility with various regional grid plug interfaces.
Rated Current: | 16A;32A | Plug Type: | CEE (IP44) | ||
Rated Voltage: | AC 220-250V | Female end: | According to your request | ||
Insulation: | Rubber | Temperature Detection: (optional) | Thermal protector or NTC Thermistor | ||
Jacket: | TPU or Rubber | Plug Standard: | EN60309 | ||
Cable Standard: | EN 50620:201 IEC 62893-3:2017 | Min. bending radius: | 5D(D:OD) | ||
Conductor: | Bare or tinned copper Stranded | RoHs,Reach: | Approved |
Model | Standard | Applicable flexible cord | Certificate | ||
SIngle Phase (16A) | EN 60309-1:1999+A1+A2 EN 60309-2:1999+A1+A2 | H07BZ5-F 3G 2.5mm²+nX0.5-1.0mm² (n=0,1,2) H07BZ6-F 3G 2.5mm²+nX0.5-1.0mm² (n=0,1,2) H07BZ5-F 3G 4.0mm²+nX0.5-1.0mm² (n=0,1,2) H07BZ6-F 3G 4.0mm²+nX0.5-1.0mm² (n=0,1,2) | TUV CE | ||
SIngle Phase (32A) | H07BZ5-F 3G 6.0mm²+nX0.5-1.0mm² (n=0,1,2) H07BZ6-F 3G 6.0mm²+nX0.5-1.0mm² (n=0,1,2) H07BZ5-F 3G 10.0mm²+nX0.5-1.0mm² (n=0,1,2) H07BZ6-F 3G 10.0mm²+nX0.5-1.0mm² (n=0,1,2) | ||||
