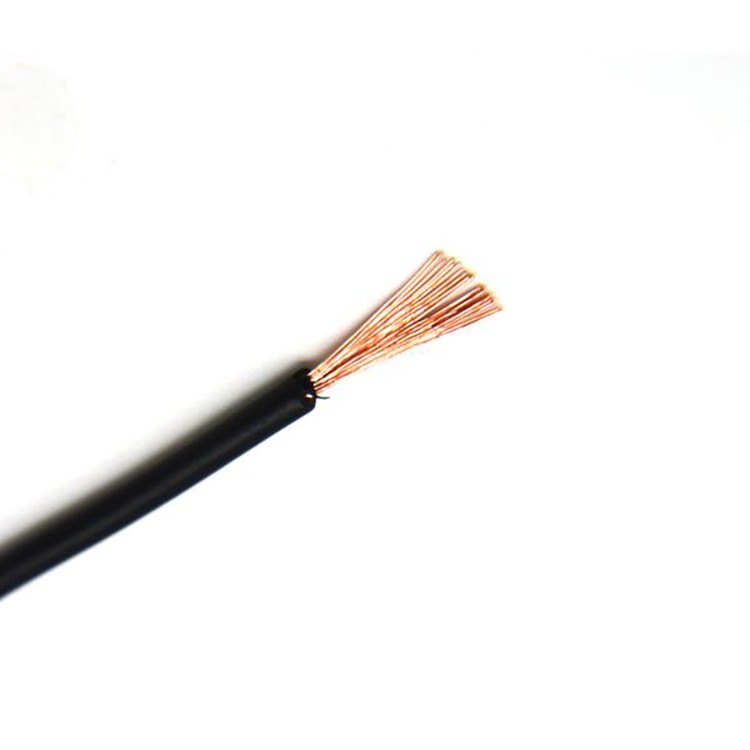

√ Rating: 150 deg C, 600 Vac, 750 Vdc, Horizontal flame.
√ Conductor :30 AWG - 4/0 AWG, solid or stranded.
√ Insulation: Extruded XLPE
√ Use : Internal wiring of appliances.
Conductor | Insulation | Max Resistance (Ω/km, 20°C, DC) | |||
AWG | No./mm | Dia.(mm) | Thick.(mm) | Dia.(mm) | |
30 | 7/0.10 | 0.3 | 0.76 | 1.9 | 381 |
28 | 7/0.127 | 0.38 | 0.76 | 2 | 239 |
26 | 7/0.16 | 0.48 | 0.76 | 2.1 | 150 |
24 | 11/0.16 | 0.61 | 0.76 | 2.2 | 94.2 |
22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 59.4 |
20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 36.7 |
18 | 16/0.254 | 1.15 | 0.76 | 2.8 | 23.2 |
16 | 26/0.254 | 1.5 | 0.76 | 3.15 | 14.6 |
14 | 41/0.254 | 1.88 | 0.76 | 3.55 | 8.96 |
12 | 65/0.254 | 2.36 | 0.76 | 4.05 | 5.64 |
10 | 105/0.254 | 3.1 | 0.76 | 4.9 | 3.546 |
8 | 168/0.254 | 4.25 | 1.15 | 6.6 | 2.23 |
6 | 266/0.254 | 5.35 | 1.15 | 7.8 | 1.403 |
4 | 420/0.254 | 6.7 | 1.15 | 9.1 | 0.882 |
2 | 665/0.254 | 8.45 | 1.53 | 11.6 | 0.5548 |
1 | 836/0.254 | 9.5 | 2.03 | 13.7 | 0.4398 |
1/0 | 1045/0.254 | 10.6 | 2.03 | 14.9 | 0.3487 |
2/0 | 1330/0.254 | 12 | 2.03 | 16.2 | 0.2766 |
3/0 | 1672/0.254 | 13.45 | 2.03 | 17.7 | 0.2194 |
4/0 | 2109/0.254 | 14.85 | 2.03 | 19.1 | 0.1722 |
