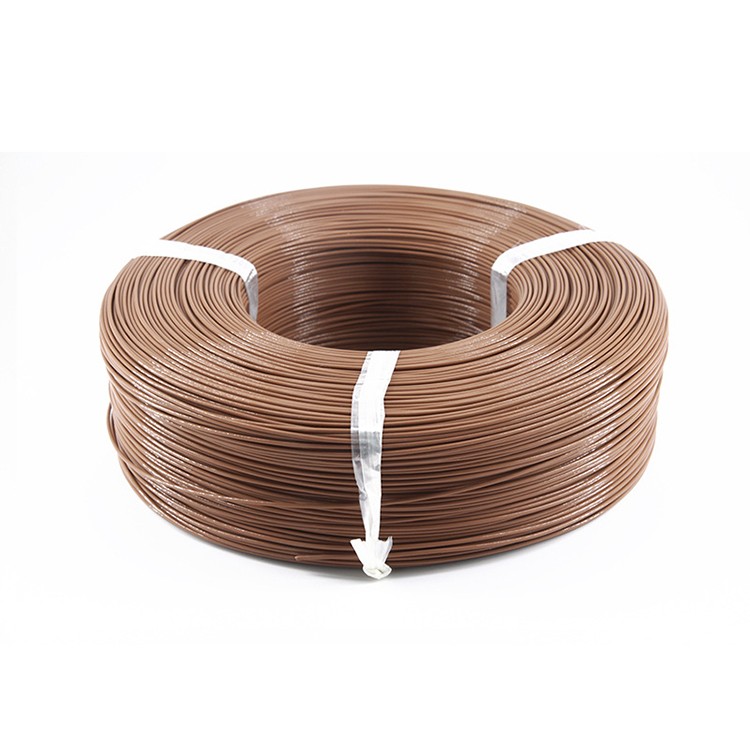

FLRY-A Automotive Wire

Home

Products

Automotive Wire

FLRY-A Automotive Wire

Product Item：FLRY-A

Standard: DIN 72551，ISO 6722
Temperature : -40℃~+80℃，-40℃~+105℃
Conductor: Bare or tinned copper stranded
Cable Insulation: PVC

Product Detail
FAQs

√ Wires for low-voltage circuits in automobiles

√ Standard insulation thickness, easy to strip and cut

√ Good delay combustibility，passed DIN 72551-5 3.7.1 flame retardant test

√ High flexibility, heat resistance, oil resistance; acid and alkali resistance, cold resistance, wear resistance, environmental protection, flame retardant and other characteristics

Conductor			Insulation		Max Resistance （Ω/km,20℃,DC）
mm²	No./mm	Nom.Dia (mm)	Nom.Thick (mm)	Nom.Dia (mm)	Max Resistance （Ω/km,20℃,DC）
0.22	7/0.2	0.6	0.26	1.15	86.5
0.35	7/0.25	0.75	0.24	1.25	54.5
0.5	19/0.19	0.95	0.28	1.5	38.2
0.75	19/0.23	1.15	0.33	1.8	25.4
1	19/0.25	1.25	0.35	2	19.1
1.5	19/0.32	1.6	0.35	2.3	13
2.5	19/0.4	2	0.43	2.9	7.8
