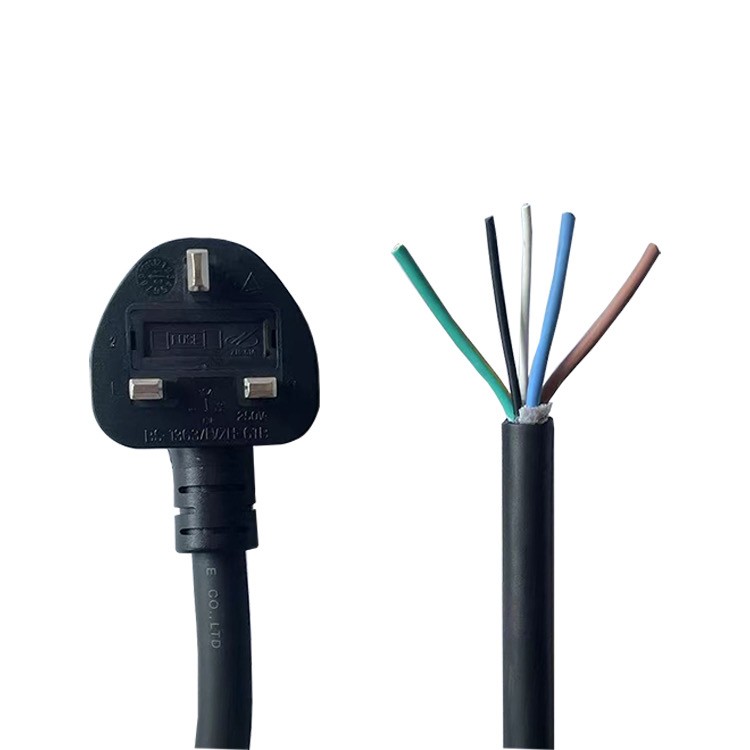

UK BS Plug type G power cord built in NTC Thermistor for Model 2 EV charger dedicated plug

UK BS Plug type G power cord built in NTC Thermistor for Model 2 EV charger dedicated plug

Product Item:Plug Type G
Rated Current : 10A,13A
Rated Voltage : 250V
Plug Type : G
Cable Jacket : TPU
Female end : According to your request
RoHS&Reach : Approval
  • Product Detail
  • FAQs

Model 2 EV charger dedicated plug

      UK 13A EV charging grid cables and plugs are used in mode 2 AC charging cable assemblies to charge battery-powered

(BEV) or plug-in hybrid electric vehicles (PHEV).

     EV charging grid cables can be used with any domestic or household socket outlet and connect to the In-Cable Control
and Protection Device (IC-CPD), allowing drivers to safely charge their electric vehicle
without the need for a dedicated circuit or EV charging station.

     All electric vehicle charging grid cables and plugs meet industry standards, regulatory, andcountry-specific compliance
requirements, ensuring compatibility with various regional grid plug interfaces.

Rated Current:10A;13APlug Type:Type G
Rated Voltage:250VFemale end:According to your request
Insulation:RubberTemperature Detection:        (optional)Thermal protector or NTC Thermistor
Jacket:TPU or RubberWorking Temp.:-35℃~+50℃
Cable Standard:

EN 50620:201

7IEC 62893-3:2017

Min. bending radius:5D(D:OD)
Conductor:Bare or tinned copper StrandedRoHs,Reach:Approved



ModelStandardApplicable flexible cordCertificate
Type GBS 1363-1:2016+A1

H05BZ5-F 3G1.5-2.5mm²+ nX0.5-1.0 mm² (n=0,1,2

 H05BZ6-F 3G1.5-2.5mm²+nX0.5-1.0 mm²(n=0,1,2)

H07BZ5-F 3G1.5-2.5mm²+nX0.5-1.0 mm²(n=0,1,2)

H07BZ6-F 3G1.5-2.5mm²+nX0.5-1.0mm² (n=0,1,2)

TUV

H05BZ5-F 3G1.5-2.5mm²+ nX0.5-1.0 mm² (n=1,2)

H05BZ6-F 3G1.5-2.5mm²+nX0.5-1.0 mm²(n=1,2)

H07BZ5-F 3G1.5-2.5mm²+nX0.5-1.0 mm²(n=1,2)

H07BZ6-F 3G1.5-2.5mm²+nX0.5-1.0mm² (n=1,,2)





...
