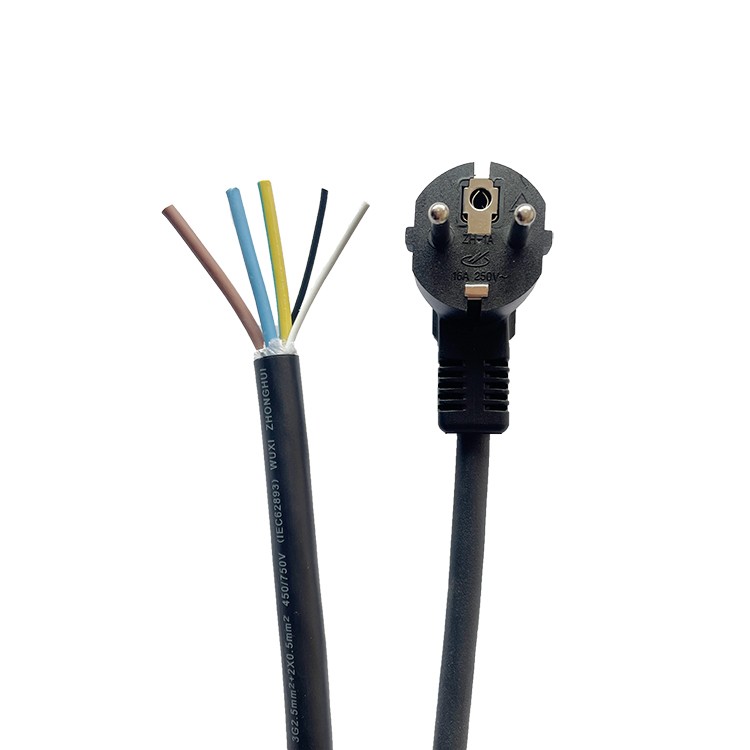

Model 2 EV charger dedicated plug
Approval : Poland, Germany, France, Spain, Portugal, Sweden, Belgium, Netherlands, Czech Republic, Denmark, Norway, Finland, Italy (German style), Korea
The thermal protector and NTC thermistor is optional.
Europe 16A EV charging grid cables and plugs are used in mode 2 AC charging cable assemblies to charge battery-powered
(BEV) or plug-in hybrid electric vehicles (PHEV).
EV charging grid cables can be used with any domestic or household socket outlet and connect to the In-Cable Control
and Protection Device (IC-CPD), allowing drivers to safely charge their electric vehicle
without the need for a dedicated circuit or EV charging station.
All electric vehicle charging grid cables and plugs meet industry standards, regulatory, andcountry-specific compliance
requirements, ensuring compatibility with various regional grid plug interfaces.
| Rated Current: | 16A | Plug Type: | CEE7/7,Schuko（IP20,IP44） | ||
| Rated Voltage: | 250V | Female end: | According to your request | ||
| Insulation: | Rubber | Temperature Detection:(optional) | Thermal protector or NTC Thermistor | ||
| Jacket: | TPU or Rubber | Working Temp.: | -35℃~+50℃ | ||
| Cable Standard: | EN50620:2017 IEC 62893-3:2017 | Min. bending radius: | 5D（D:OD） | ||
| Conductor: | Bare or tinned copper Stranded | RoHs,Reach: | Approved | ||
| Model | Standard | Applicable flexible cord | Certificate | ||
| CEE7/7 | IEC 60884-1:2002+A1+A2 DIN VDE 0620-1:2006+A1 DIN VDE 0620-2-1:2006+A1 NF C 61-314:2008+A1 UNE 20315-1-1:2017 NP 1260-1:2016 SS 428 08 34:2013+R1+T1 NBN C 61-112-1:2017 NEN 1020:2019 CSN 35 4516:2007+Z1 DS 60884-2-D1:2017 SFS 5610:2015+A11 NEK 502:2016 CEI 23-50:2007+V1+V2+V3+V4 PN-IEC 60884-1:2006 PN-IEC 60884-1:2006+A1 PN-IEC 60884-1:2006/Ap1 PN-IEC 60884-1:2006+A2 | H05BZ5-F 3G1.5-2.5mm²+ nX0.5-1.0 mm² (n=0,1,2) H05BZ6-F 3G1.5-2.5mm²+nX0.5-1.0 mm²(n=0,1,2) H07BZ5-F 3G1.5-2.5mm²+nX0.5-1.0 mm²(n=0,1,2) H07BZ6-F 3G1.5-2.5mm²+nX0.5-1.0mm² (n=0,1,2) | TUV | ||
