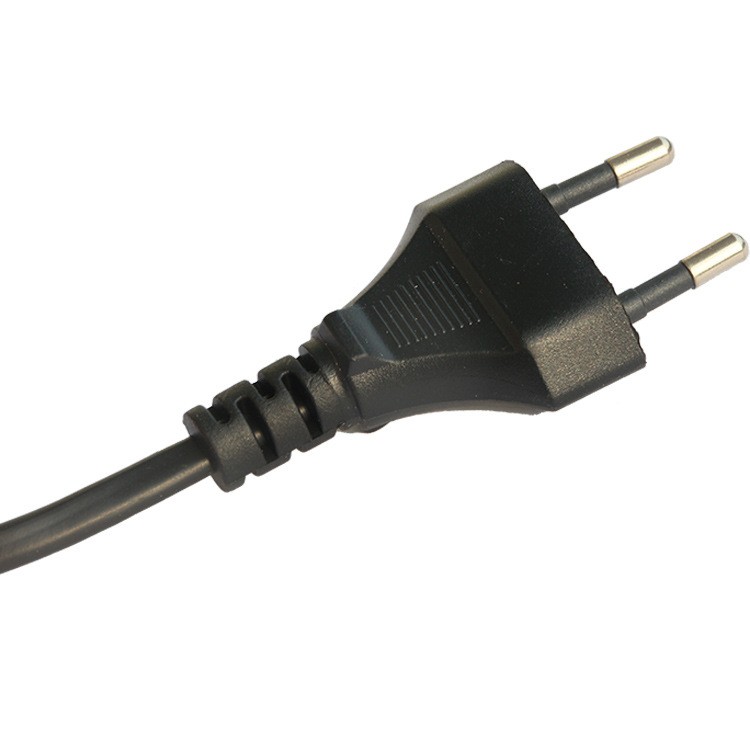

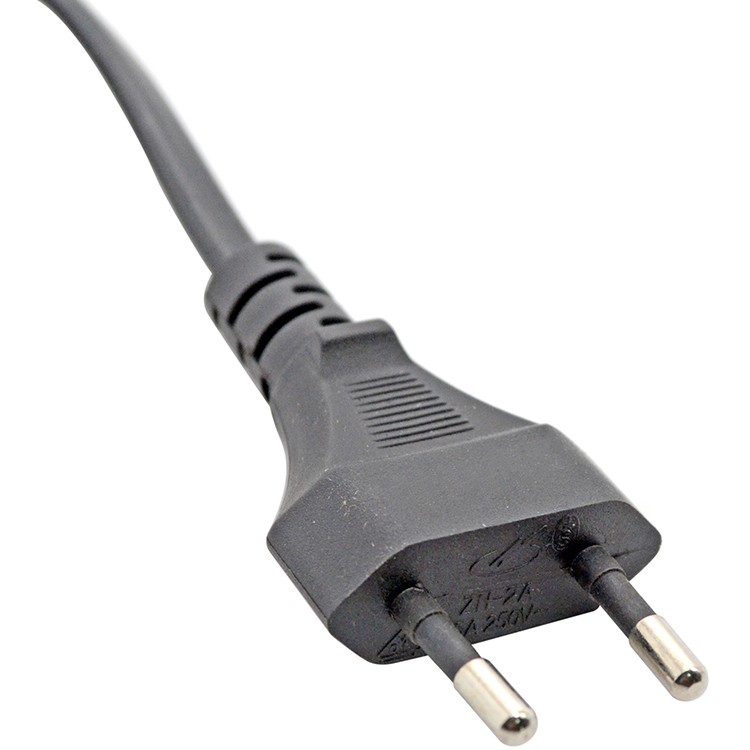

Europlug 2.5A 250V CEE7/16 Plug Power Cord

Europlug 2.5A 250V CEE7/16 Plug Power Cord

Product Item:CEE7/16,Plug Type C
Rated Current : 2.5A
Rated Voltage : 250V
Plug Type : CEE7/16;Plug type C
Cable Insulation : PVC
Cable Jacket : PVC
Female end : According to your request
RoHS&Reach : Approval
  • Product Detail
  • FAQs

√ Used in: Europe, with the exception of the UK, Ireland, Cyprus and Malta

√ The Type C electrical plug (or Europlug) is a two-wire plug that has two round pins. It fits into any socket that accepts 4.0 – 4.8 mm round contacts on 19 mm centres. They are being replaced by E, F, J, K or N sockets which work perfectly with Type C plugs.Type C plugs are generally limited for use in appliances that require 2.5 amps or less.

√ Europlugs are compatible with the following types of sockets: CEE 7/3 (Schuko), CEE 7/5 (French), SN 441011 (Swiss), CEI 23-50 (Italian), DS 107-2D1 (Danish), SI 32 (Israeli) and IEC 60906-1 and other outlets that accept plugs with two round pins, 19 mm apart.

√ Passed VDE, Switzerland S+ certification

StandardApplicable flexible cordCertificates

EN 50075:1990

DIN VDE 0620

H03VVH2-F 2 x 0.5-0.75 mm²

H05VVH2-F 2 x 0.75 -1.0 mm²

H03VV-F 2 x 0.5-0.75 mm²

H05VV-F 2 x 0.75-1.0 mm²

VDE

S+





...
