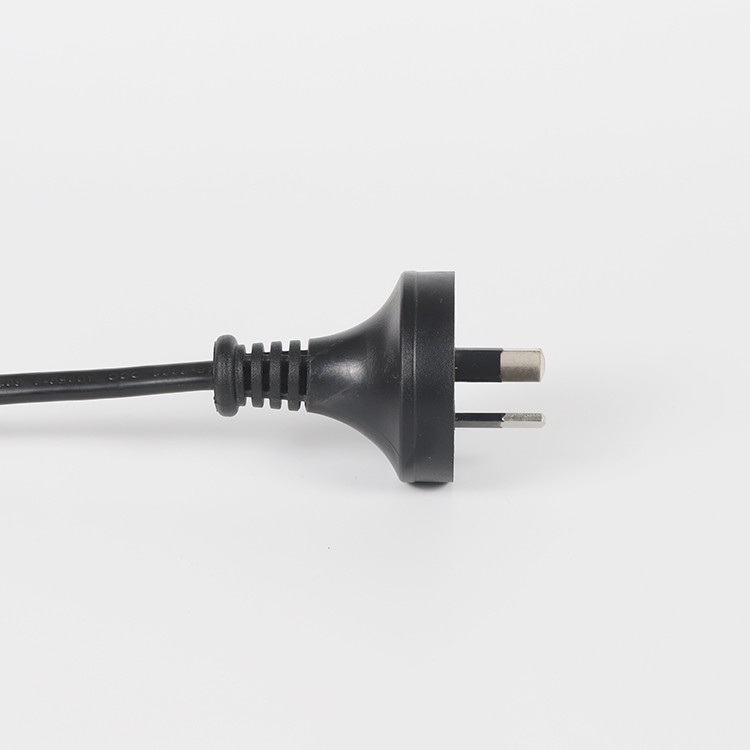

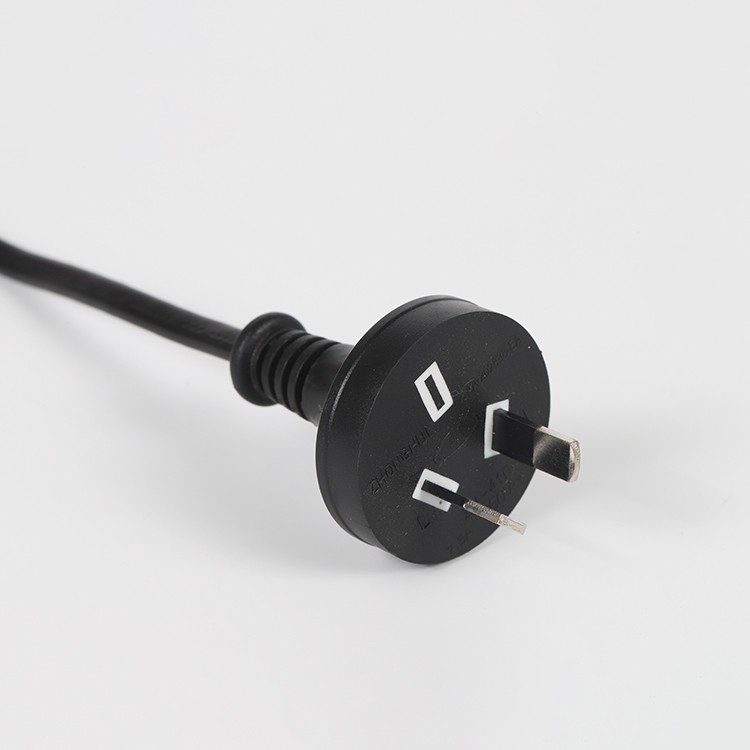

SAA Approved 7.5A 250V 2 Pin Plug Type I Power Cord

Product Item：Plug Type I

Rated Current : 7.5A
Rated Voltage : 250V
Plug Type : Plug Type I
Cable Insulation : PVC or Rubber
Cable Jacket : PVC or Rubber
Female end : According to your request
RoHS&Reach : Approval

Product Detail
FAQs

√ Used in: Australia, New Zealand, Papua New Guinea, Argentina

√ The Type I plug has two flat pins in a V-shape as well as a grounding pin. A version of the plug, which only has the two flat pins, exists as well. The Australian plug also works with sockets in China.

√ Australia’s standard plug/socket system is rated 10 amps but a plug/socket configuration rated 15 amps also exists, although the ground pin is wider. A standard 10 amp plug will fit into a 15 amp socket but not the other way around.

√ Certified by SAA

Model	Standard	Available with Cable	Approval
2-Pin 7.5A 250V	AS/NZS3112	H03VVH2-F 2×0.5-0.75mm²	SAA RCM
		H05VVH2-F 2×0.75mm²
		H05VV-F 2×0.75mm²
		H05RN-F 2×0.75mm²
