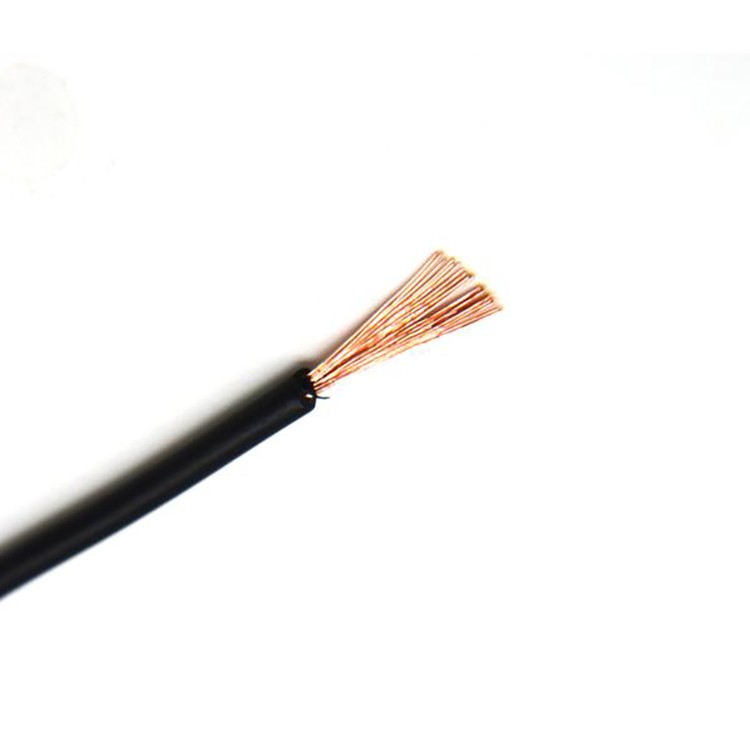

√ Rating: 125 deg C, 600 Vac, Horizontal flame.
√ Conductor :26 AWG - 9 AWG, solid or stranded.
√ Insulation: Extruded XL, XLPO or XLPE, 30 mils minimum average thickness, 27 mils minimum thickness at any point.
√ Internal wiring of appliances.
Conductor | Insulation | Max Resistance (Ω/km, 20°C, DC) | |||
AWG | No./mm | Dia.(mm) | Thick.(mm) | Dia.(mm) | |
26 | 7/0.16 | 0.48 | 0.76 | 2.1 | 150 |
24 | 11/0.16 | 0.61 | 0.76 | 2.2 | 94.2 |
22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 59.4 |
20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 36.7 |
18 | 16/0.254 | 1.15 | 0.76 | 2.8 | 23.2 |
16 | 26/0.254 | 1.5 | 0.76 | 3.15 | 14.6 |
14 | 41/0.254 | 1.88 | 0.76 | 3.55 | 8.96 |
12 | 65/0.254 | 2.36 | 0.76 | 4.05 | 5.64 |
10 | 105/0.254 | 3.1 | 0.76 | 4.9 | 3.41 |
