√ Used in: United Kingdom, Ireland, Cyprus, Malta, Malaysia, Singapore, Hong Kong and gulf countries

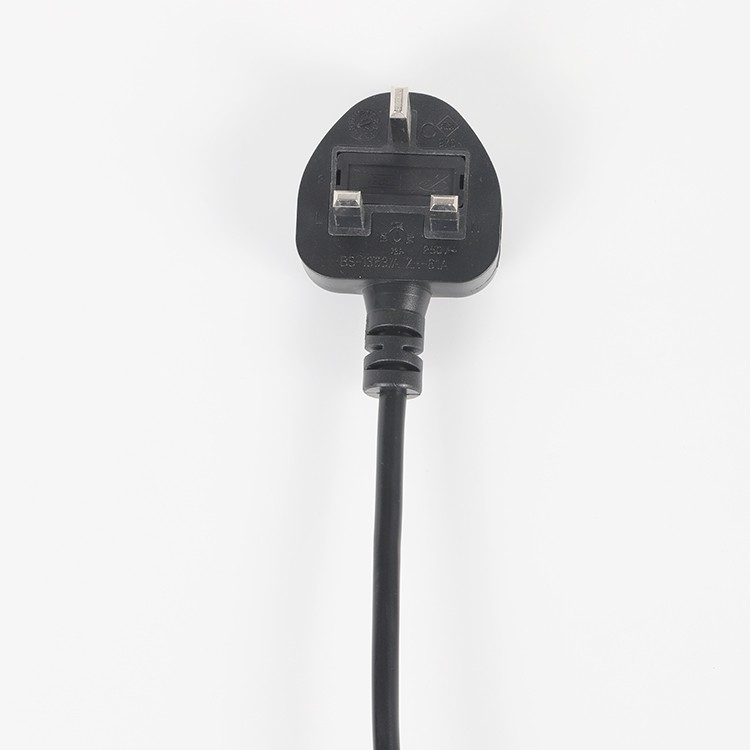

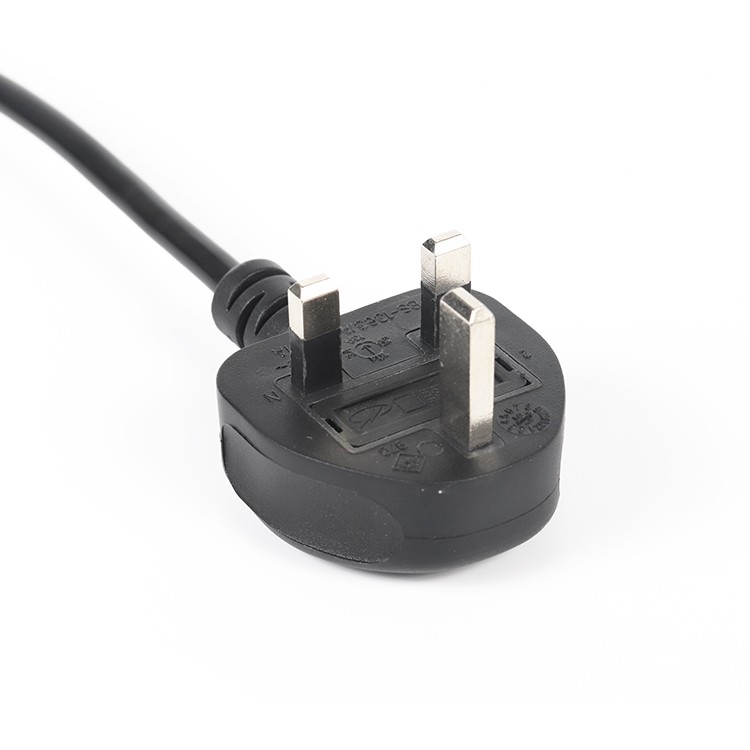

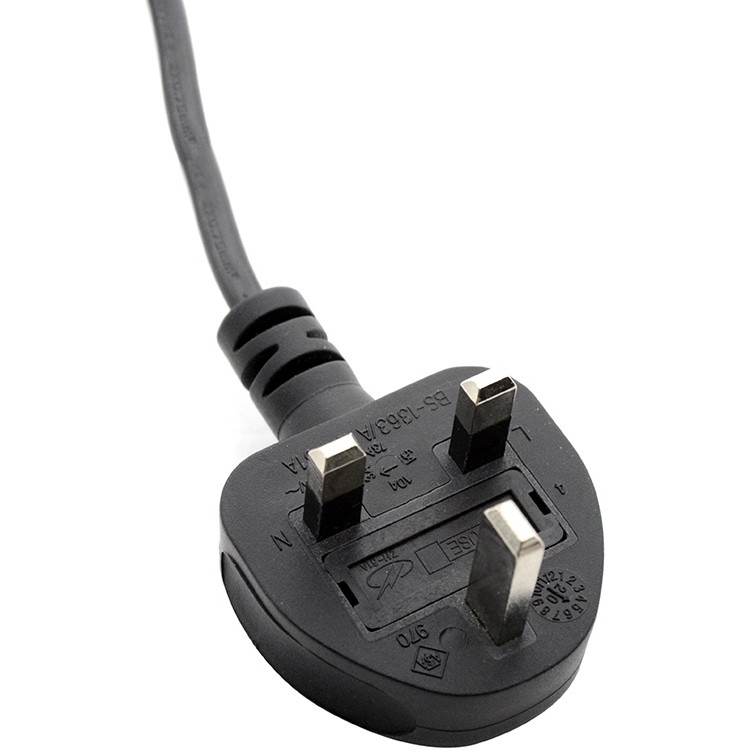

√ The Type G electrical plug has three rectangular blades in a triangular pattern and has an incorporated fuse (usually a 3 amps fuse for smaller appliances such as a computer and a 13 amps one for heavy duty appliances such as heaters). British sockets have shutters on the live and neutral contacts so that foreign objects can’t be introduced into them.
√ Certified by ASTA, GCC
Model | Standard | Available with Cable | Approval |
Plug Type G 3A 250V 5A 250V 10A 250V 13A 250V | BS 1361-1 SASO 2203 | H03VVH2-F 2×0.5-0.75mm² | ASTA GCC |
H05VVH2-F 2×0.75-1.0mm² | |||
H03VV-F 2×0.5-0.75mm² | |||
H03VV-F 3×0.5-0.75mm² | |||
H05VV-F 2×0.75-1.5mm² | |||
H05VV-F 3×0.75-1.5mm² | |||
H05RN-F 2×0.75-1.0mm² | |||
H05RN-F 3×0.75-1.0mm² | |||
H07RN-F 2×1.0-1.5mm² | |||
H07RN-F 3×1.0-1.5mm² | |||
H07RN8-F 3×1.0mm² |
