S+ Certified 250V 10A Swiss T12 Plug Type J Power Cord

S+ Certified 250V 10A Swiss T12 Plug Type J Power Cord

Product Item:CH-Type 12
Rated Current : 10A
Rated Voltage : 250V
Plug Type : CH-Type 12;Plug Type J
Cable Insulation : PVC or Rubber
Cable Jacket : PVC or Rubber
Female end : According to your request
RoHS&Reach : Approval
  • Product Detail
  • FAQs

√ Used in: Switzerland and Lichtenstein

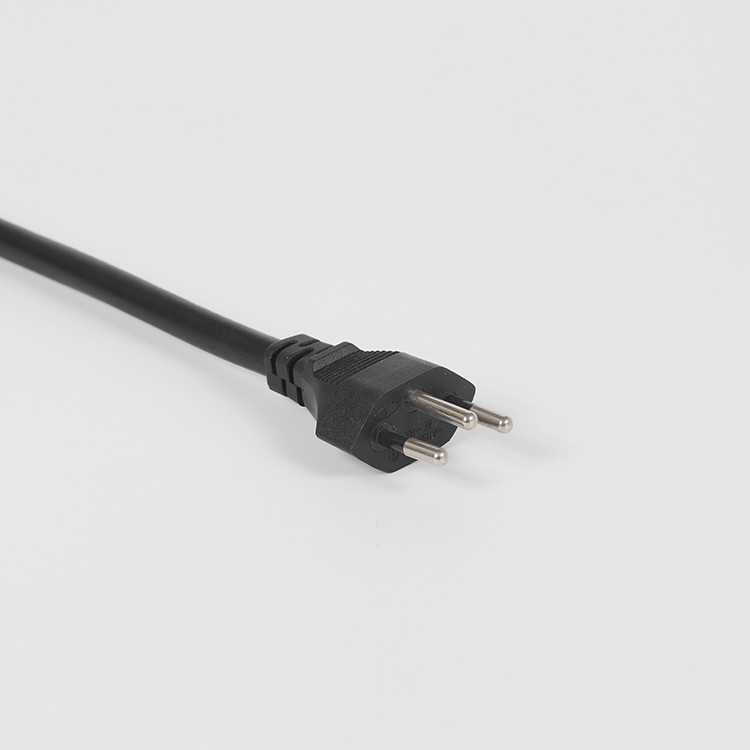

√ The Type J plug has two round pins as well as a grounding pin. Although the Type J plug looks a lot like the Brazilian Type N plug it is incompatible with the Type N socket as the earth pin is further away from the centre line than on Type N. However, Type C plugs are perfectly compatible with Type J sockets.

√ Plugs and socket-outlets for household use, defined by SN 441011:2019 (formerly SEV 1011*) are used in Switzerland and Fürstentum (Principality) Liechtenstein only.

√ Passed the IEC and Swiss S+ certification

Model
Standard
Available with Cable
Approval


Plug Type J

CH-Type 12

10A 250V

IEC 60884-1

SN 441011-1

SN 441011-2

H03VV-F 3×0.75mm²

S+
H05VV-F 3×0.75-1.0mm²
H05RN-F 3×0.75-1.0mm²
H07RN-F 3×1.0-1.5mm²
H07RN8-F 3×1.0mm²





...
