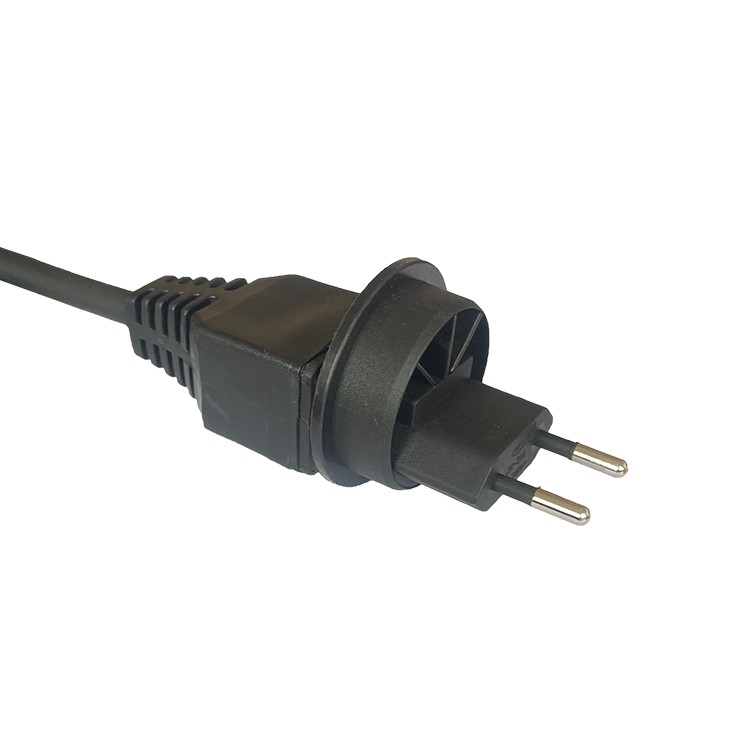

S+ Certified IP55 250V 10A Swiss T11 Plug Power Cord

Product Item：CH-Type 11

Rated Current : 10A
Rated Voltage : 250V
Plug Type : CH-Type 11,IP55
Cable Insulation : PVC or Rubber
Cable Jacket : PVC or Rubber
Female end : According to your request
RoHS&Reach : Approval

Product Detail
FAQs

√ Used in: Switzerland and Lichtenstein

√ The Type J plug has two round pins as well as a grounding pin. Although the Type J plug looks a lot like the Brazilian Type N plug it is incompatible with the Type N socket as the earth pin is further away from the centre line than on Type N. However, Type C plugs are perfectly compatible with Type J sockets.

√ Plugs and socket-outlets for household use, defined by SN 441011:2019 (formerly SEV 1011*) are used in Switzerland and Fürstentum (Principality) Liechtenstein only.

√ Passed the IEC and Swiss S+ certification

Model	Standard	Available with Cable	Approval
CH-Type11(IP55) 10A 250V	IEC 60884-1 SN 441011-1 SN 441011-2	H03VVH2-F 2x0.75mm²	S+
		H05VVH2-F 2x0.75-1.0mm²
		H03VV-F 2×0.75mm²
		H05VV-F 2×0.75-1.5mm²
		H05RN-F 2×0.75-1.0mm²
		H05RN8-F 2×0.75-1.0mm²
		H07RN-F 2×1.0-1.5mm²
		H07RN8-F 2×1.0-1.5mm²
