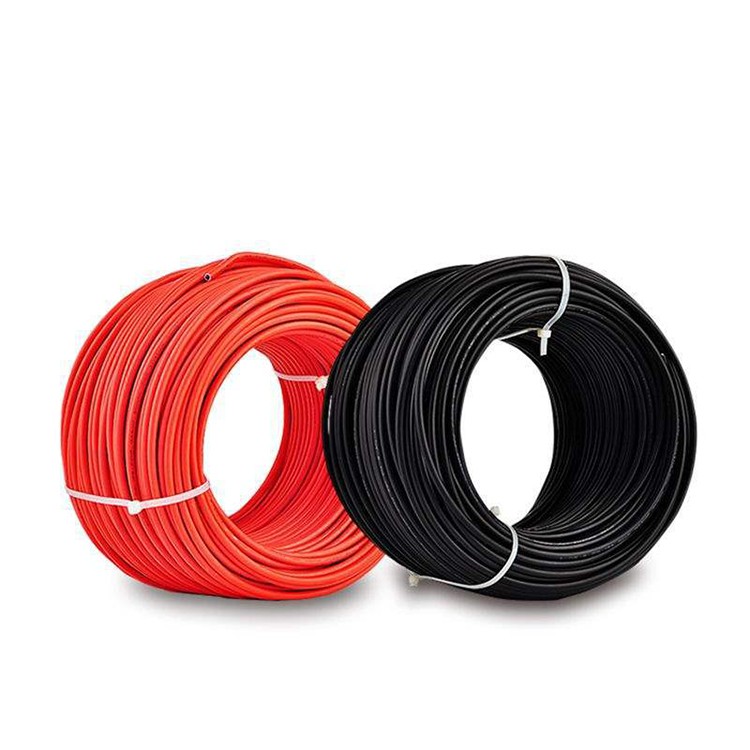

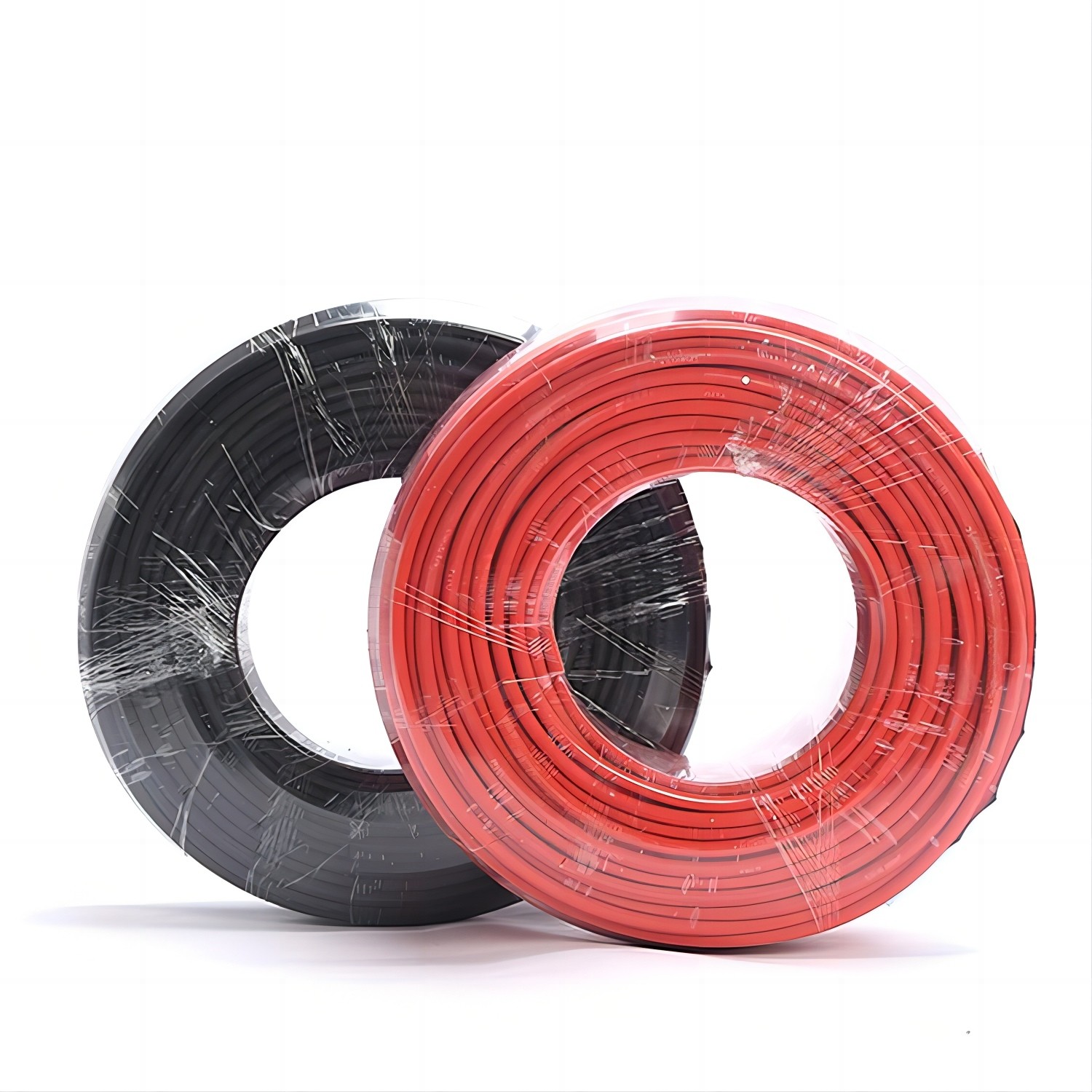

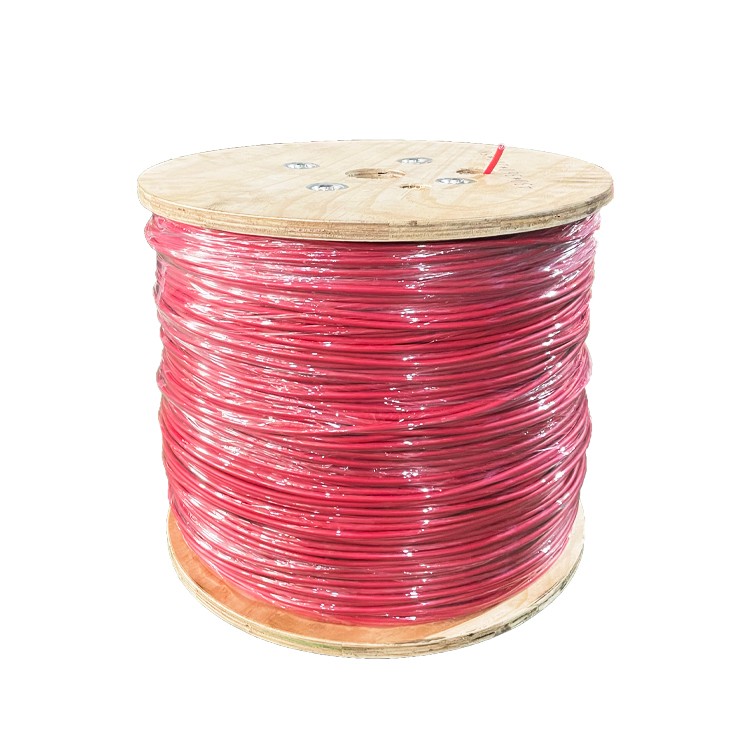

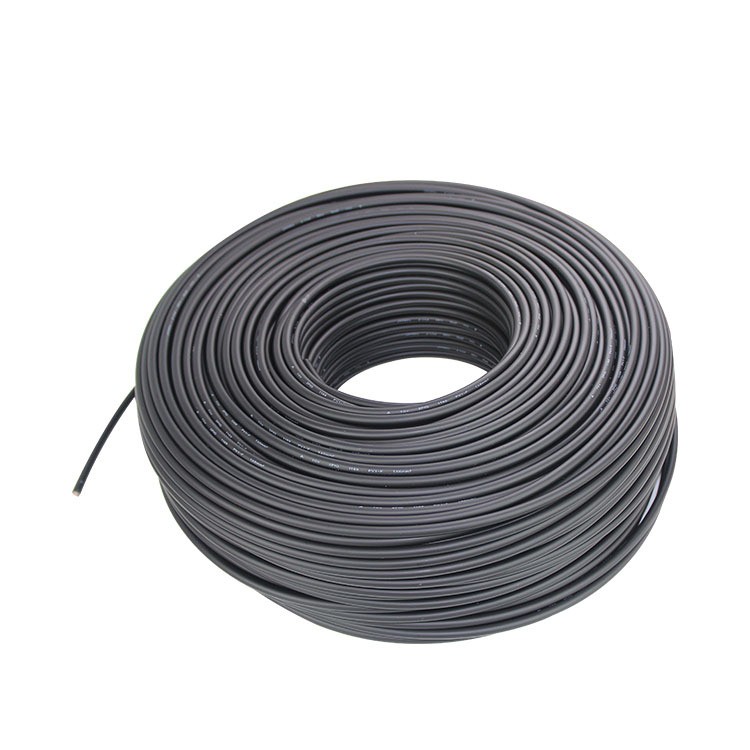

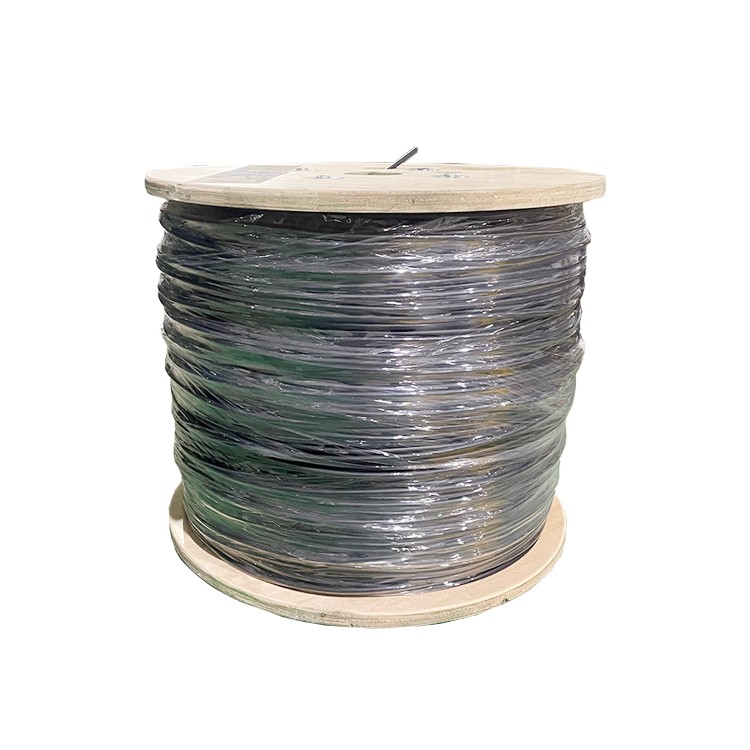

TUV Certified H1Z2Z2-K 4mm² 6mm² Solar PV Cable

TUV Certified H1Z2Z2-K 4mm² 6mm² Solar PV Cable

Product Item:H1Z2Z2-K
Standard:EN50618 ; IEC62930
Temperature : 90℃
Rated Voltage : DC1500V
Conductor: Tinned Copper
Insulation:XLPE
Jacket:XLPE
Certificate: TUV,RoHS,Reach
  • Product Detail
  • FAQs

√ TÜV Certified H1Z2Z2-K 1.5mm²~70mm²

√ Tinned Copper Conductor

√ Low-smoke halogen-free radiation cross-linked polyolefin insulation, halogen-free, phosphorus-free

√ Heat-resistant, cold-resistant, wear-resistant, UV-resistant, ozone-resistant, hydrolysis-resistant, termite-resistant

√ High mechanical strength, waterproof, oil resistance, chemical resistance

ModelConductorInsulationJacket

Max Resistance

(Ω/km,20℃,DC)

mm²Nom.Dia.(mm)Nom.Thick.   (mm)Nom.Dia.(mm)

Nom.Thick.

(mm)

Nom.Dia.(mm)
H1Z2Z2-K1.51.60.73.10.84.713.7
2.520.73.50.85.18.21
42.60.74.10.85.65.09
63.20.74.60.86.23.39
104.50.75.90.87.71.95
165.60.770.88.81.24
256.80.98.7110.80.795
358.20.910.21.112.60.565
509.81121.214.60.393
7011.81.114.21.216.80.277






...
