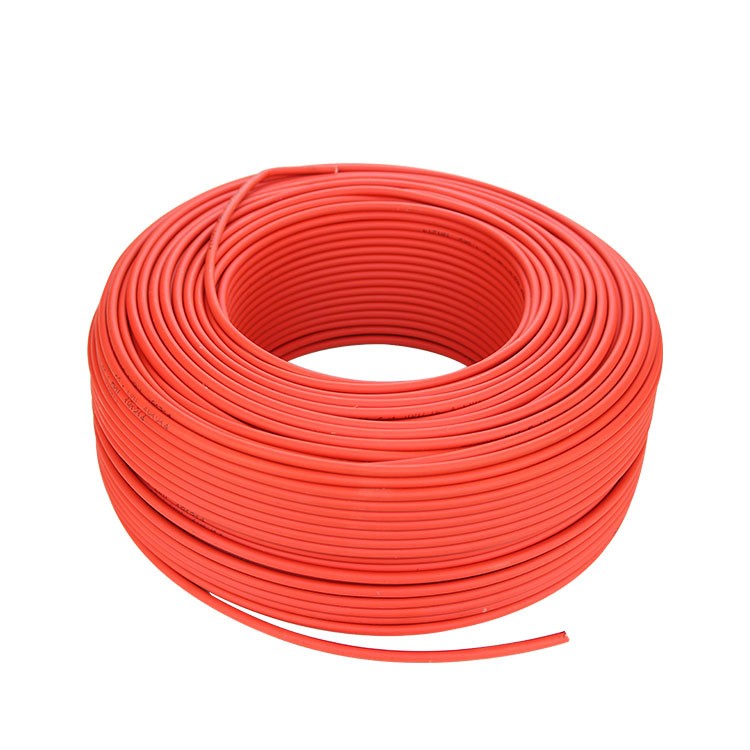

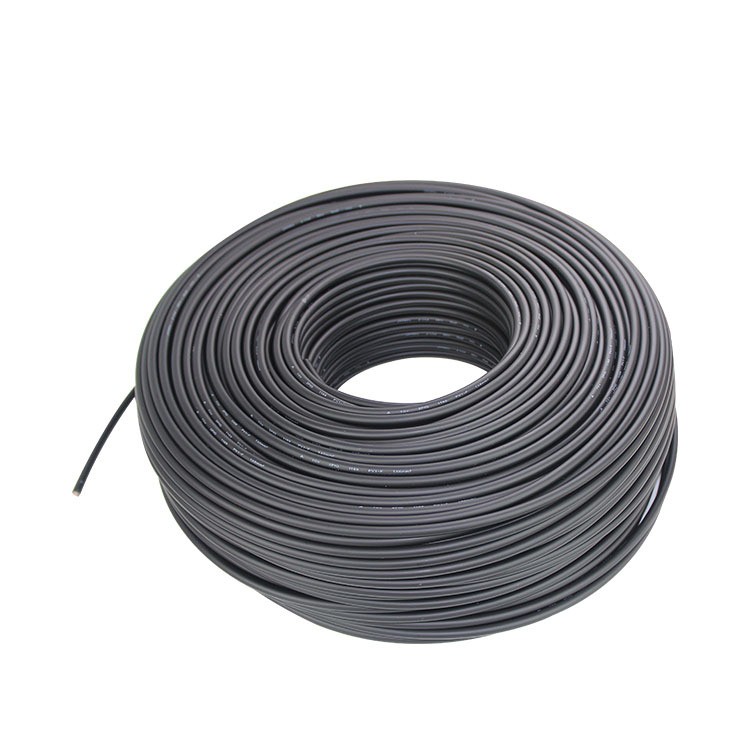

UL Certified UL4703 Standard 12AWG 10AWG Solar PV Cable

UL Certified UL4703 Standard 12AWG 10AWG Solar PV Cable

Product Item:UL4703
Standard:UL4703
Temperature : -40℃~+90℃
Rated Voltage : 600V;1000V:2000V
Conductor: Tinned Copper
Insulation:XLPE
Jacket:XLPE
Certificate: UL
  • Product Detail
  • FAQs

√ UL 4703 18AWG~4/0AWG

√ Low-smoke halogen-free radiation cross-linked polyolefin insulation, halogen-free, phosphorus-free

√ Heat-resistant, cold-resistant, wear-resistant, UV-resistant, ozone-resistant, hydrolysis-resistant, termite-resistant

√ High mechanical strength, waterproof, oil resistance, chemical resistance


ModelAWGmm²Conductor

600V

O.D.(mm)

1000V&2000V

O.D.(mm)

Max Resistance

(Ω/km,20℃,DC)

UL4703180.82316/0.2544.25 5.00 23.2
161.3126/0.2544.55 5.30 14.6
142.0841/0.2544.95 5.70 8.96
123.3165/0.2545.40 6.20 5.64
105.261105/0.2546.20 6.90 3.546
88.367168/0.2547.90 8.40 2.23
613.3266/0.2549.80 10.30 1.403
421.15420/0.25411.70 11.70 0.882
233.62665/0.25413.30 13.40 0.5548
142.41836/0.25415.20 16.10 0.4398
1/053.491045/0.25417.00 17.10 0.3487
2/067.431330/0.25418.30 18.80 0.2766
3/085.011672/0.25419.80 20.40 0.2194
4/0107.22109/0.25421.50 22.10 0.1722





...
