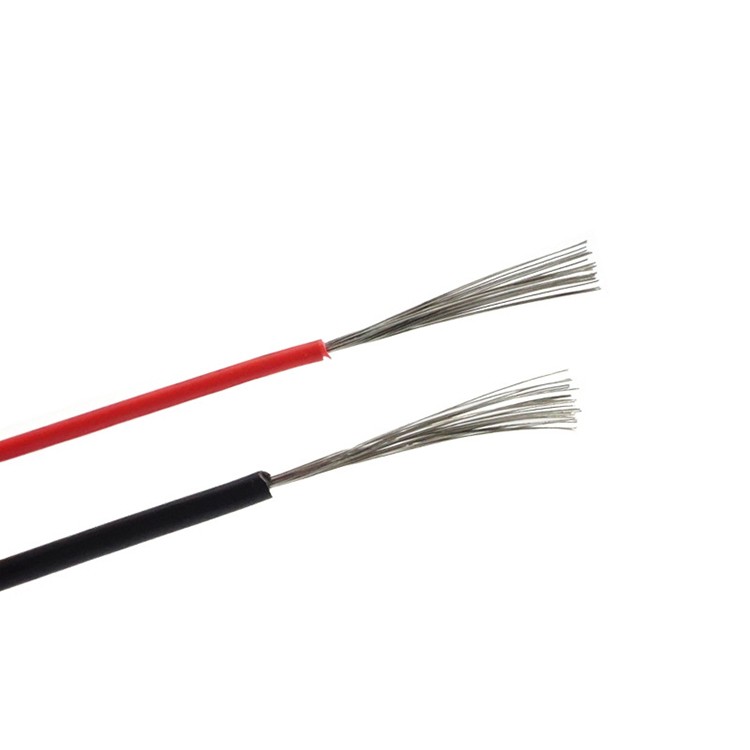

UL10269 1000V 105℃ FT2 Flame Test PVC Electric Wire

UL10269 1000V 105℃ FT2 Flame Test PVC Electric Wire

Product Item:UL10269
Standard: UL758
Voltage :AC 1000V , DC 1250V
Temperature : 80℃,90℃,105℃
Flame Test : FT2 or VW-1
Conductor: Bare or tinned copper stranded
Cable Insulation: PVC
  • Product Detail
  • FAQs

√ Uniform insulation thickness for easy stripping and cutting,Passed FT-2 flame test

√ Rating:80, 90, 105 deg C, 1000 Vac or 1250 Vdc, Horizontal flame, Optional - Oil Resistant 60 deg C or 80 deg C.

√ Conductor:30 AWG - 2000 kcmil, solid or stranded round.

√ Use:Internal Wiring of Appliances; or Internal Wiring of Appliances where exposed to oil at a temperature not exceeding 60 deg. C or 80 deg. C (whichever is applicable). Tags may also indicate the following: 3,500 V peak - for electronic use only.

ConductorInsulationMax Resistance
(Ω/km, 20°C, DC)
AWGNo./mmNom.Dia.(mm)Nom.Thick.(mm)Nom.Dia.(mm)
2411/0.160.610.762.293.25
2217/0.160.760.762.3555
2026/0.160.940.762.5534.6
1841/0.161.180.763.7821.8
1626/0.2541.490.763.114.64
1441/0.2541.880.763.59.25
1265/0.2542.360.7645.82
10105/0.25430.764.63.66
9131/0.2543.70.765.32.96
8168/0.2544.21.146.52.35
7210/0.2544.71.1471.87
6266/0.2545.31.528.41.48
5329/0.2545.81.5291.17
4420/0.2546.61.529.70.928
3532/0.2547.51.5210.50.744
2665/0.2548.41.5211.50.59
1836/0.2549.42.0313.50.467
1/01045/0.25410.52.0314.60.37
2/01330/0.25411.92.03160.297
3/01672/0.254132.0317.50.236
4/02109/0.25414.72.0319.10.187
250kcmil2516/0.254162.4121.40.158
300kcmil2997/0.25417.52.41230.132
350kcmil3478/0.25418.92.4124.20.114
400kcmil3996/0.25420.22.4125.60.0997
450kcmil4514/0.25421.52.41270.0886
500kcmil4995/0.25422.62.41280.0798





...
