√ Rating: 200 deg C, 600 Vac, Horizontal flame, Optional Oil Resistant 80 deg C, Optional Gasoline Resistant.

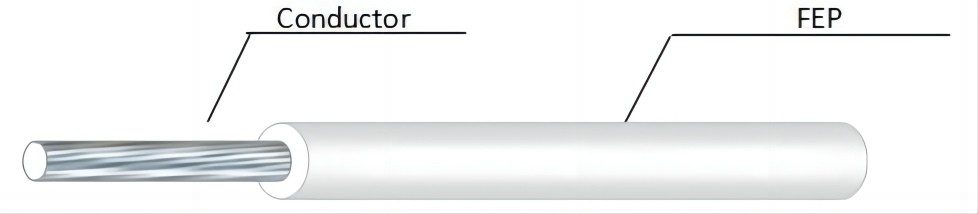

√ Conductor :30 AWG - 4/0 AWG, solid or stranded.
√ Insulation : FEP
√ Covering : Optional, FEP, 10 mils or heavier or glass braid 7 mils or heavier.
√ Use : Internal Wiring of Appliances. In addition, the tag may also indicate the following: Suitable for immersion in gasoline; gasoline vapor; and 80 deg. C in oil.
Size AWG | Conductor Construction (No./mm) | Insulation Thickness (mm) | Diameter (mm) |
30 | 7/0.1 | 0.51 | 1.35±0.05 |
28 | 7/0.127 | 1.45±0.05 | |
26 | 7/0.16 | 1.50±0.05 | |
24 | 7/0.2 | 1.65±0.05 | |
22 | 7/0.254 | 1.80±0.1 | |
20 | 7/0.32 | 2.00±0.1 | |
18 | 7/0.39 | 2.25±01 | |
16 | 19/0.3 | 2.60±0.1 | |
14 | 19/0.38 | 3.00±0.2 | |
12 | 19/0.48 | 3.50±0.2 | |
10 | 37/0.43 | 4.10±0.2 | |
8 | 57/0.43 | 0.76 | 5.50±0.3 |
6 | 67/0.5 | 6.60±0.3 | |
4 | 106/0.5 | 8.00±0.30 | |
2 | 168/0.5 | 9.70±0.30 | |
1 | 212/0.5 | 1.14 | 11.50±0.50 |
1/0 | 268/0.5 | 12.70±0.50 | |
2/0 | 342/0.5 | 14.00±0.50 | |
3/0 | 430/0.5 | 15.40±0.50 | |
4/0 | 538/0.5 | 17.00±0.50 |
