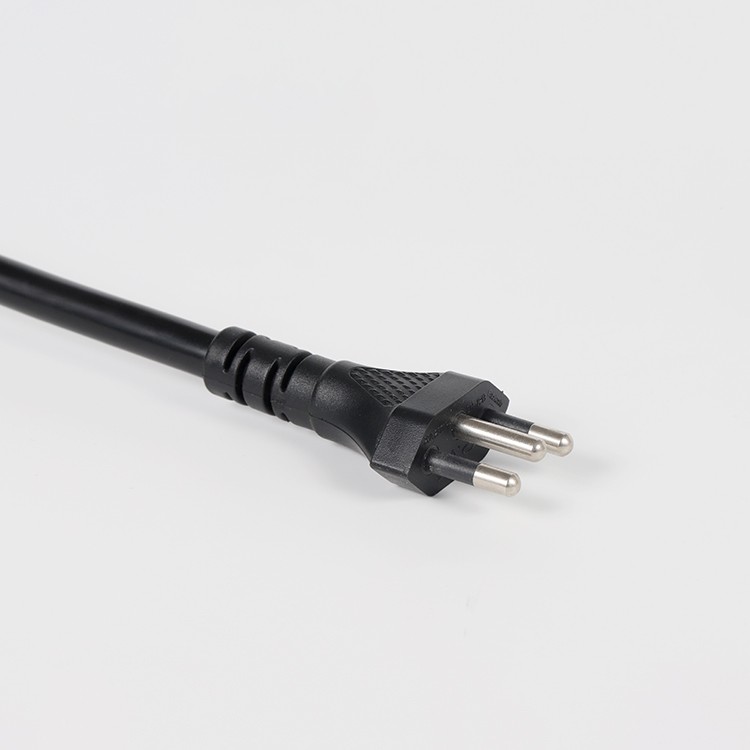

Brazilian 3-Pin 10A 12A 16A 20A 250V Plug Type N Power Cord

Brazilian 3-Pin 10A 12A 16A 20A 250V Plug Type N Power Cord

Product Item:Plug Type N
Rated Current : 10A;12A;16A;20A
Rated Voltage : 250V
Plug Type : Plug Type N
Cable Insulation : PVC or Rubber
Cable Jacket : PVC or Rubber
Female end : According to your request
RoHS&Reach : Approval
  • Product Detail
  • FAQs

√ Used in: Brazil

√ Brazil is one of the few countries that uses two types of voltage. While most states use 127 V, some of them use 220 V. It is therefore important to find out the local voltage before plugging in your appliance

√ There are two variations of the Type N plug, one rated at 10 amps, and one at 20 amps. The 10 amp version has two round pins that are 4 mm thick, and a grounding pin. The 20 amp version, used for heavier appliances, has two round pins 4.8 mm in diameter, and a grounding pin. The Type N socket was designed to work with Type C plugs as well.

√ Certified by INMETRO

Model
Standard
Available with Cable
Approval

Brazilian 3-Pin

Plug Type N


ABNT NBR NM 60884-1

NBR 14136

10A 250V

H03VV-F 3x0.75 mm²

H05VV-F 3x0.75-1.0 mm²

H05RN-F 3x0.75-1.0 mm²

H07RN-F 3x1.0 mm²

INMETRO
12A 250V

H05RN-F 3x1.0 mm²

H05VV-F 3x1.0 mm²

H07RN-F 3x1.0 mm²

16A 250V

H05VV-F 3x1.5 mm²

H07RN-F 3x1.5 mm²

20A 250V

H05VV-F 3x2.5 mm²

H07RN-F 3x2.5 mm²





...
