Thailand 16A 250V Plug Type O Power Cord

Product Item： Plug Type O

Rated Current : 16A
Rated Voltage : 250V
Plug Type : Plug Type O
Cable Insulation : PVC or Rubber
Cable Jacket : PVC or Rubber
Female end : According to your request
RoHS&Reach : Approval

Product Detail
FAQs

√ Type O is used exclusively in Thailand

√ The type O socket and plug, rated at 16 amps, are the official standard in Thailand. The plug system was designed in 2006, but its use is not widespread as yet. It is currently gradually being phased in. The standard is described in TIS 166-2549.

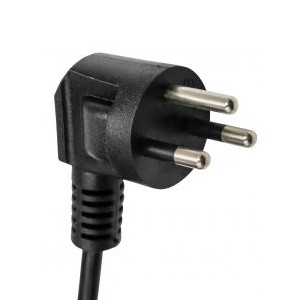

√ Type O consists of two power pins and an earth pin, which are round and have a 4.8 mm diameter. The power pins measure 19 mm in length, they have 10 mm long insulated sleeves and their centers are spaced 19 mm apart.

Model	Standard	Available with Cable	Approval
Plug Type O 16A 250V	TIS 166-2549	H03VV-F 3G0.75mm²	TUV
		H05VV-F 3G0.75~1.5mm²
		H05RN-F 3G0.75~1.0mm²
		H07RN-F 3G1.0~1.5mm²
		H07RN8-F 3G1.0~1.5mm²
