√ Used in: Brazil
√ Brazil is one of the few countries that uses two types of voltage. While most states use 127 V, some of them use 220 V. It is therefore important to find out the local voltage before plugging in your appliance
√ Certified by INMETRO
Model | Standard | Available with Cable | Approval | |

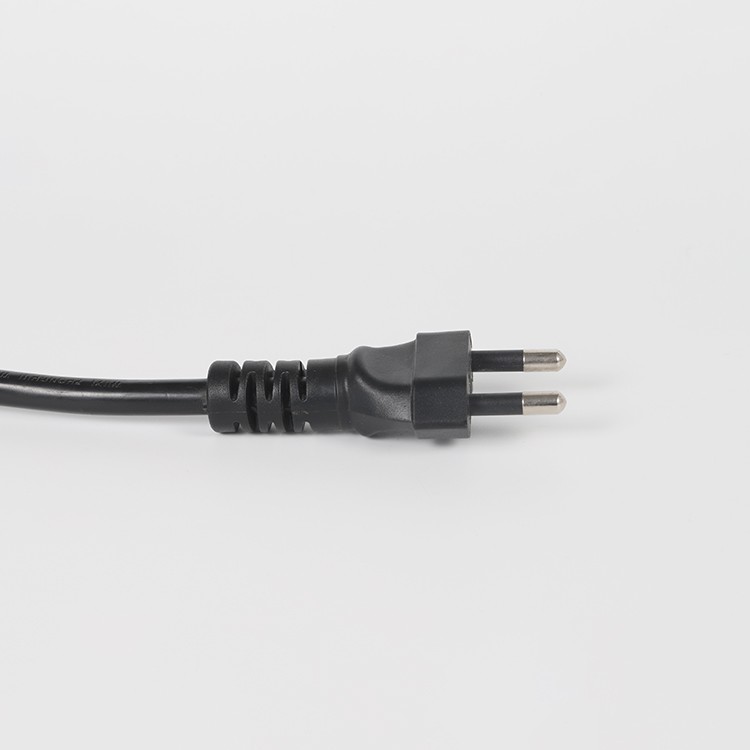

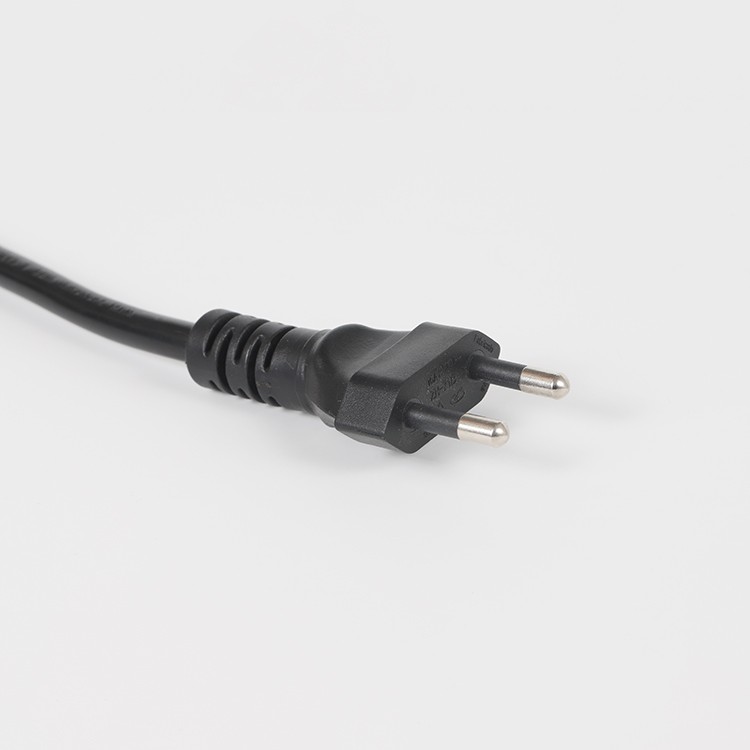

Brazilian 2-Pin | ABNT NBR NM 60884-1 NBR 14136 | 10A 250V | H03VVH2-F 2x0.75 mm² H03VV-F 2x0.75 mm² H05VVH2-F 2x0.75-1.0 mm² H05VV-F 2x0.75-1.0 mm² H05RN-F 2x0.75-1.0 mm² H07RN-F 2x1.0 mm² | INMETRO |
12A 250V | H05VVH2-F 2x1.0 mm² H05VV-F 2x1.0 mm² H05RN-F 2x1.0 mm² H07RN-F 2x1.0 mm² | |||
16A 250V | H05VV-F 2x1.5 mm² H07RN-F 2x1.5 mm² | |||
20A 250V | H05VV-F 2x2.5 mm² H07RN-F 2x2.5 mm² |
