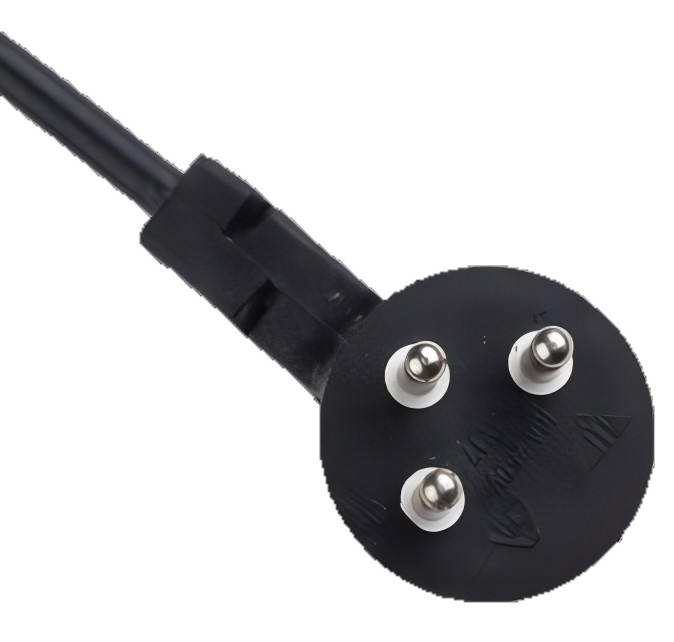

Israel Plug Type H Power Cord

Israel Plug Type H Power Cord

Product Item:Plug Type H
Rated Current : 16A
Rated Voltage : 250V
Plug Type : Plug Type H
Cable Insulation : PVC or Rubber
Cable Jacket : PVC or Rubber
Female end : According to your request
RoHS&Reach : Approval
  • Product Detail
  • FAQs

√ Used in: Israel

The Type H plug is unique to Israel and has two flat pins in a V-shape as well as a grounding pin. It is however currently being phased out in favour of a round-pinned version. The holes in Type H sockets are wide in the middle so as to accommodate the round-pinned version of the Type H plug as well as Type C plugs.

√ Comply with SI 32 Part 1.1(2017) Figure 206a and IEC 60884-1:2002

Model
Standard
Available with Cable
Approval

Plug Type H

16A 250V

SI 32

IEC 60884-1:2002

H03VV-F 3G0.5~0.75mm²

H05VV-F 3G0.75~2.5mm²

H05RN-F 3G0.75~1.0mm²

H07RN-F 3G1.0~2.5mm²

H07BQ-F 3G1.0~2.5mm²

H05RN8-F 3G0.75~2.5mm²

H07RN8-F 3G1.0~2.5mm²


TUV





...
