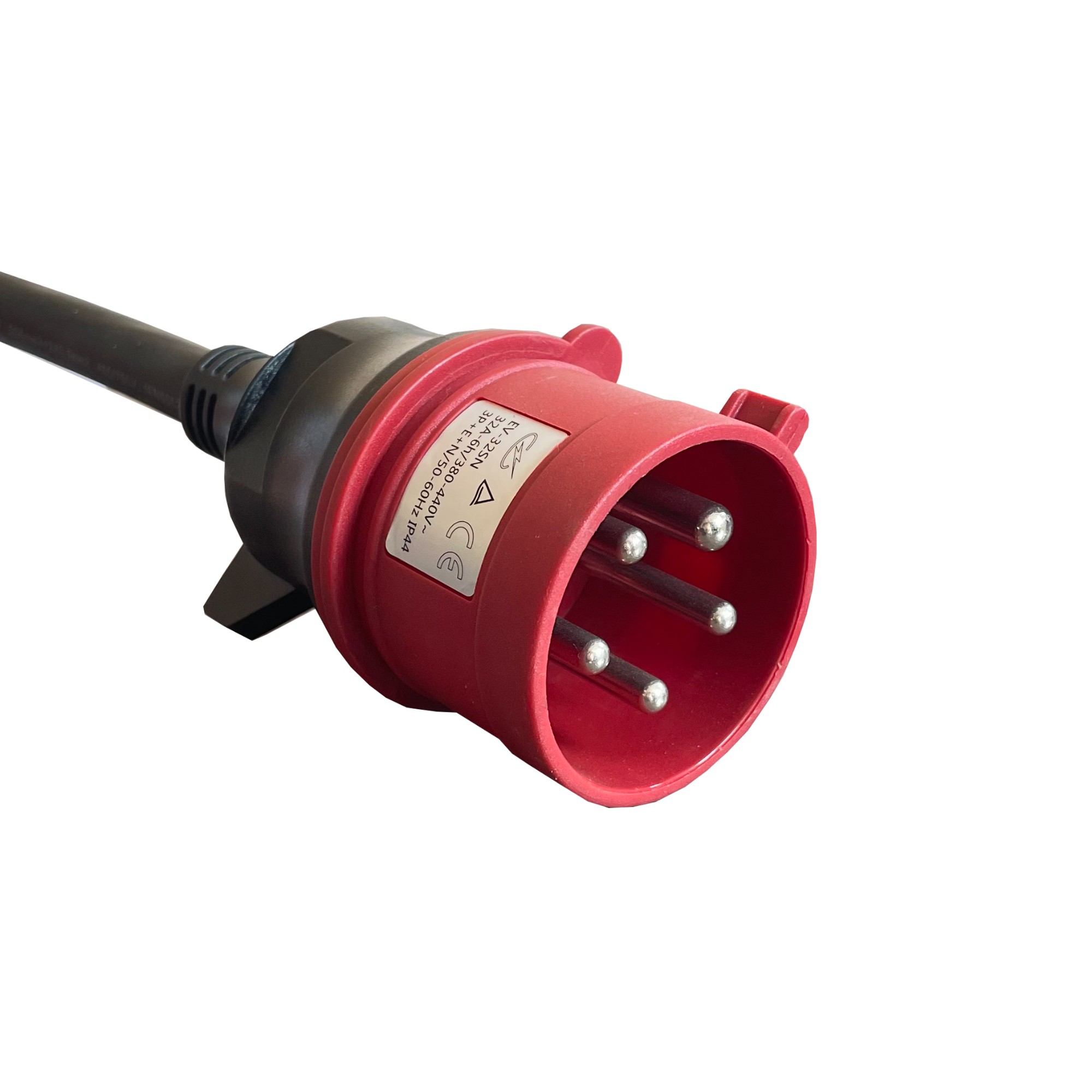

CEE Three Phase 16A 32A Plug built-in NTC Thermistor for Model 2 EV Charger

CEE Three Phase 16A 32A Plug built-in NTC Thermistor for Model 2 EV Charger

Product Item:
Rated Current : 16A,32A
Rated Voltage : AC 380-440V
Plug Type : CEE
Cable Jacket : TPU
Female end : According to your request
RoHS&Reach : Approval
  • Product Detail
  • FAQs

Model 2 EV charger dedicated plug

CEE Plug-Three Phase

      EN60309 Standard CEE 16A & 32A  EV charging grid cables and plugs are used in mode 2 AC charging cable assemblies to charge battery-powered

(BEV) or plug-in hybrid electric vehicles (PHEV).

     EV charging grid cables can be used with any domestic or household socket outlet and connect to the In-Cable Control
and Protection Device (IC-CPD), allowing drivers to safely charge their electric vehicle
without the need for a dedicated circuit or EV charging station.

     All electric vehicle charging grid cables and plugs meet industry standards, regulatory, andcountry-specific compliance
requirements, ensuring compatibility with various regional grid plug interfaces.

Rated Current:16A;32APlug Type:CEE (IP44)
Rated Voltage:AC 380-440VFemale end:According to your request
Insulation:RubberTemperature Detection:        (optional)Thermal protector or NTC Thermistor
Jacket:TPU or RubberPlug Standard:EN60309
Cable Standard:

EN 50620:201

 IEC 62893-3:2017

Min. bending radius:5D(D:OD)
Conductor:Bare or tinned copper StrandedRoHs,Reach:Approved



ModelStandardApplicable flexible cordCertificate

Three Phase

(16A)

EN 60309-1:1999+A1+A2


EN 60309-2:1999+A1+A2

H07BZ5-F 5G 2.5mm²+nX0.5-1.0mm² (n=0,1,2)

H07BZ6-F 5G 2.5mm²+nX0.5-1.0mm² (n=0,1,2)

H07BZ5-F 5G 4.0mm²+nX0.5-1.0mm² (n=0,1,2)

H07BZ6-F 5G 4.0mm²+nX0.5-1.0mm² (n=0,1,2)

TUV

CE

Three Phase

(32A)

H07BZ5-F 5G 6.0mm²+nX0.5-1.0mm² (n=0,1,2)

H07BZ6-F 5G 6.0mm²+nX0.5-1.0mm² (n=0,1,2)

H07BZ5-F 5G 10.0mm²+nX0.5-1.0mm² (n=0,1,2)

 H07BZ6-F 5G 10.0mm²+nX0.5-1.0mm² (n=0,1,2)





...
