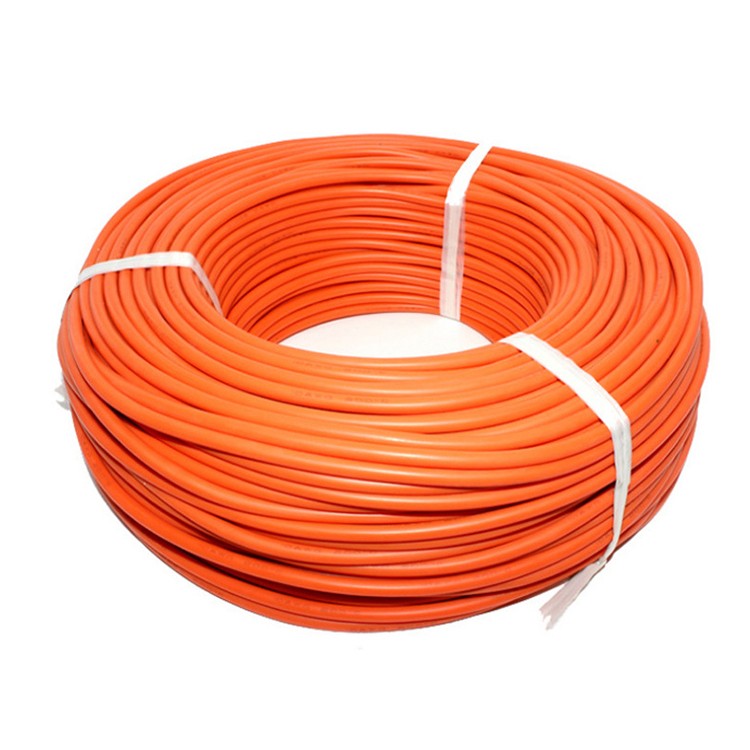

900V 125℃ TUV Certified ES-H09ZZ-F Energy Storage Cable

900V 125℃ TUV Certified ES-H09ZZ-F Energy Storage Cable

Product Item:ES-H09ZZ-F
Standard:CQC1143;PPP58049A
Temperature : -40℃~125℃
Rated Voltage : 900V
Conductor: Stranded Bare Copper
Cable Insulation:XLPE
Cable Jacket: XLPE
Certificate: TUV,RoHS,Reach
  • Product Detail
  • FAQs

√ TÜV SUD and CQC certification

√ Low smoke halogen free flame retardant heat resistant 125℃ cross-linked polyolefin insulation/jacket ;  The product has the advantages of softness, cold resistance, heat resistance, high flame retardant, UV resistance, long service life and so on.

√ Passed single vertical flame test (IEC60332-1); Applied to energy storage system,battery-to-battery connection, battery-inverter connection, BMS connection, etc.


ModelConductorInsulationJacket

Max Resistanc

 (Ω/km,20℃,DC)

mm²No./mmNom.Dia. (mm)Nom.Thick. (mm)

Nom.Dia.

(mm)

Nom.Thick. (mm)Nom.Dia. (mm)

ES-H09ZZ-F(TUV)

ES-RYJYJ-125(CQC)

456/0.302.590.74.050.75.55.09
684/0.303.170.74.650.76.13.39
1078/0.404.080.75.60.77.11.95
16126/0.405.590.77.10.78.61.24
25196/0.406.950.98.90.810.60.795
35276/0.408.30.910.20.8120.565
50396/0.409.91120.813.80.393
70553/0.4011.71.1140.9160.277
95760/0.4013.871.116.20.918.20.21
120950/0.4015.51.2180.9200.164
1501178/0.4017.261.420.3122.50.132
1851463/0.4019.241.622.6124.80.108
2401911/0.4023.41.7271.129.50.0817





...
