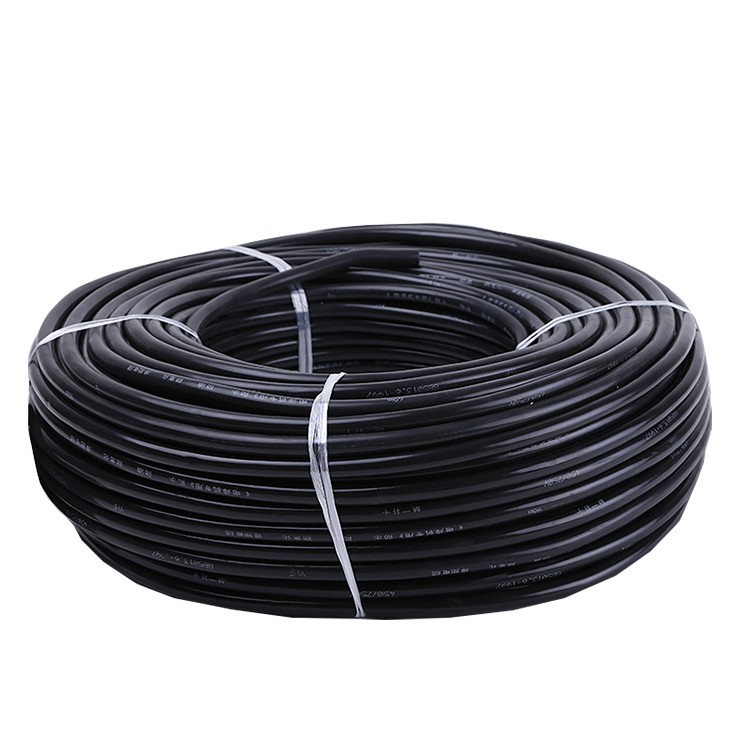

TUV Certified H01N2-D Welding cable for Arc Welding Machine

Home

Products

Welding cable

TUV Certified H01N2-D Welding cable for Arc Welding Machine

TUV Certified H01N2-D Welding cable for Arc Welding Machine

Product Item：H01N2-D

Standard:EN 50525-2-81
Temperature :85°C
Rated Voltage : 100V
Conductor: Stranded Bare Copper
Cable Insulation:CPE
Certificate: TUV,RoHS,Reach

Product Detail
FAQs

√ TUV certified Welding cable

√ Uniform insulation thickness for easy stripping and cutting

√ Passed IEC 60332-1 vertical flame test

Conductor			Insulation		MAX.COND Resistance (Ω/km, 20°C, DC)
mm²	No./mm	Nom.Dia. (mm)	Nom.Thick. (mm)	Nom.Dia. (mm)	MAX.COND Resistance (Ω/km, 20°C, DC)
10	322/0.2	4.47	2	8.6	1.95
16	504/0.2	5.6	2	9.7	1.19
25	791/0.2	6.98	2	11.1	0.78
35	1102/0.2	8.36	2	12.5	0.552
50	1577/0.2	9.98	2.2	14.5	0.39
75	2205/0.2	12.6	2.4	17.5	0.276
95	3038/0.2	14.78	2.6	20.2	0.204

...

Tags: H01N2-D Welding Cable
