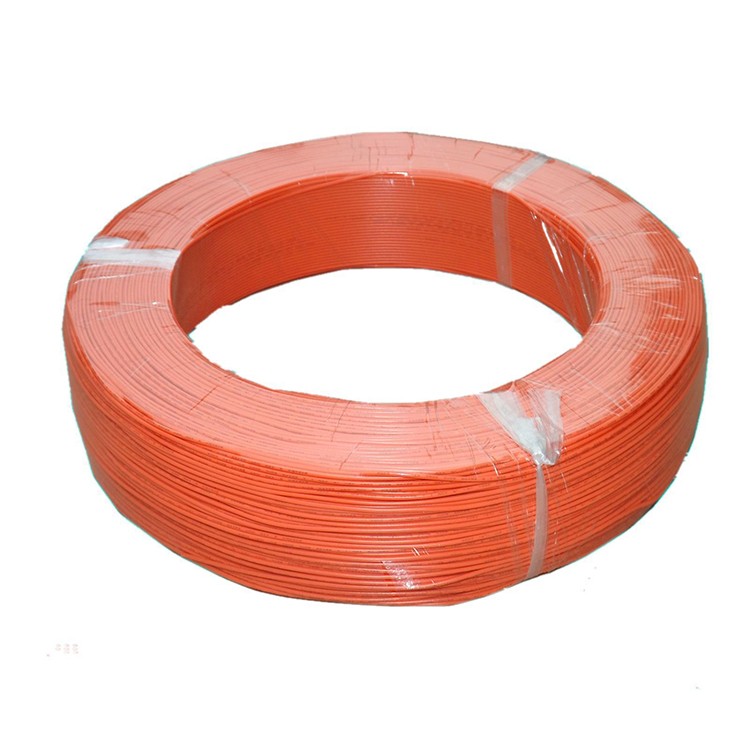

QB-A QC-B Automotive Wire

QB-A QC-B Automotive Wire

Product Item:QB-A
Standard:QC-T 730-2005
Temperature : -40℃~+90℃;-40℃~+105℃
Conductor: GB/T 3956 Bare or tinned copper stranded
Cable Insulation:PVC
  • Product Detail
  • FAQs

√ Wires for low-voltage circuits in automobiles

√ Standard insulation thickness, easy to strip and cut

√ Good delay combustibility,Passed single vertical flame test

√ High flexibility, heat resistance, oil resistance; acid and alkali resistance, cold resistance, wear resistance, environmental protection, flame retardant and other characteristics


ConductorInsulationMax Resistance
mm²No./mm

Nom.Dia.

(mm)

Nom.Thick.

(mm)

Nom.Dia.

(mm)

Bare Copper

(Ω/km,20℃,DC)

Tinned Copper

(Ω/km,20℃,DC)

0.3512/0.20.80.251.454.455.5
0.516/0.20.920.281.737.138.2
0.7524/0.21.130.31.924.725.4
0.8519/0.241.20.3220.2320.8
132/0.21.30.32.118.519.1
1.530/0.251.570.32.412.713
2.550/0.252.040.3537.67.82
456/0.32.590.43.84.714.85
684/0.33.170.44.33.143.23
864/0.43.950.55.22.252.32
1080/0.44.50.661.821.85
16126/0.45.70.657.91.161.18
25196/0.47.60.659.40.740.757
35276/0.48.71110.560.565
50396/0.410.41.213.50.390.393





...
