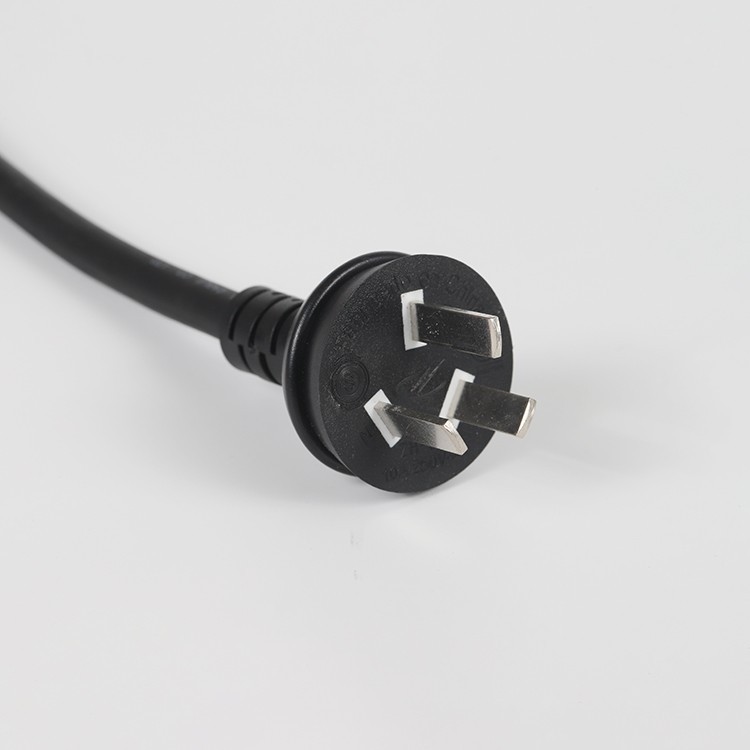

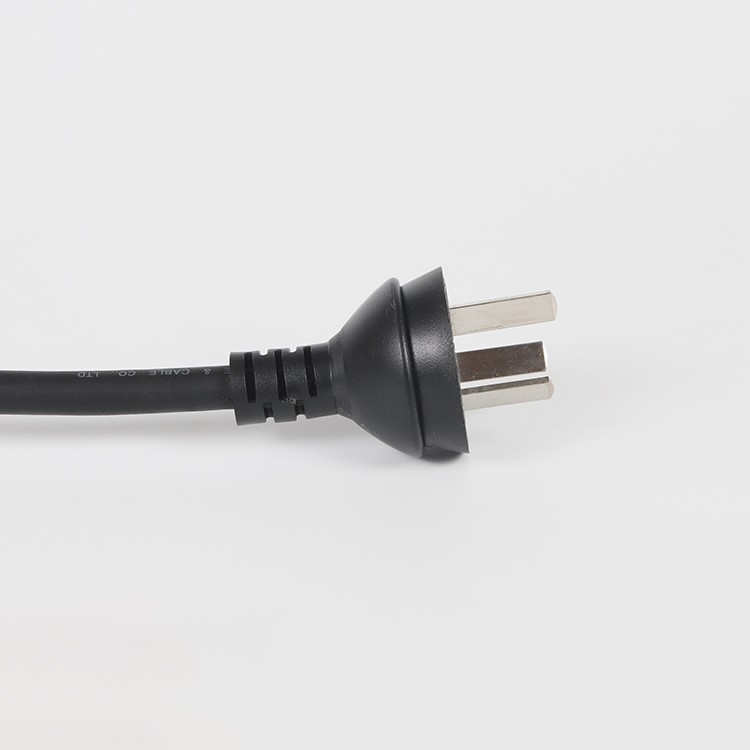

Argentina 10A 250V 3 Pin Plug Type I Power Cord

Product Item：Plug Type I

Rated Current : 10A
Rated Voltage : 250V
Plug Type : Plug Type I
Cable Insulation : PVC or Rubber
Cable Jacket : PVC or Rubber
Female end : According to your request
RoHS&Reach : Approval

Product Detail
FAQs

√ Used in : Argentina, Uruguay

√ The Type I plug has two flat pins in a V-shape as well as a grounding pin. A version of the plug, which only has the two flat pins, exists as well.

√ L and N slots have a reversed position compared to Australasian AS/NZ 3112 polarity，And the length of L, N and ground pins are longer than the Australian standard, and the width is the same. In addition, the IRAM 2073 standard has 20A, and the IRAM 2063 standard has only 10A.

√ Passed the Argentine IRAM standard, S-Mark certification

Model	Standard	Available with Cable	Approval
3-Pin 10A 250V	IRAM 2073 IRAM-NM 60884	H03VV-F 3×0.5-0.75mm²	S-Mark
		H05VV-F 3×0.75-1.5mm²
		H05RN-F 3×0.75-1.0mm²
		H07RN-F 3×1.0-1.5mm²
